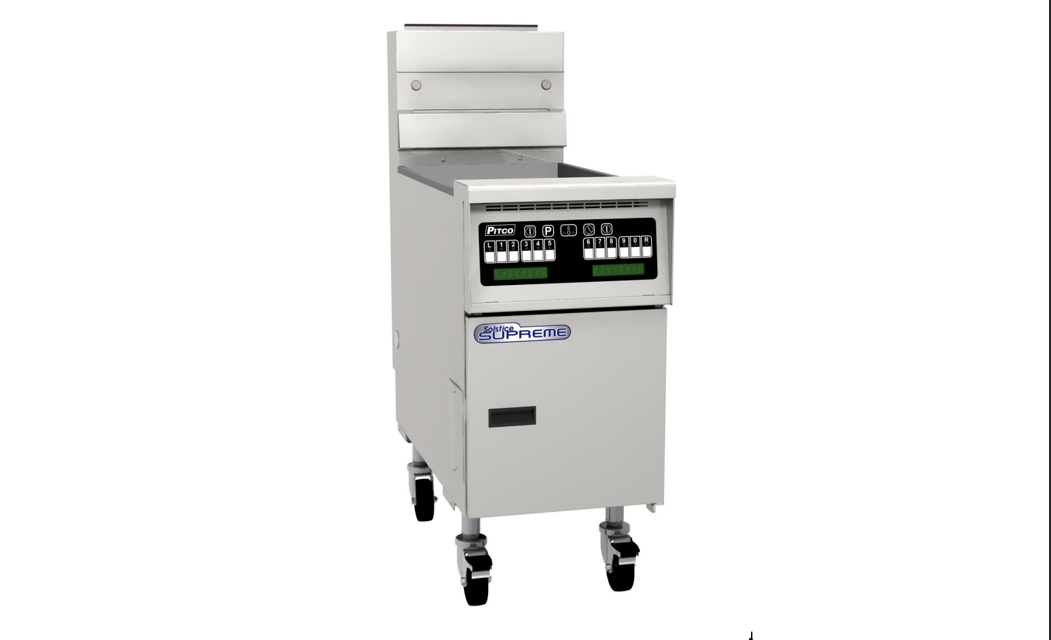

Pitco Gas Fryer SGM18D4

Pull the blue drain handle down to drain oil/shortening from the cooker tank into the filter pan

Connect the filter flush hose to the quick connecting fitting

Point the filter hose nozzle outlet into the cooker tank

Pull the yellow handle to turn the pump on and allow oil/shortening to flow through the flush hose

Electrical Connections and Harnesses

Check electrical connections and harnesses for integrity

Check temperature probes for carbon build up and plating

Clean temperature probes if necessary

Check proper mounting of probes and sensors

Ensure all fasteners are secure

Recheck for gas leaks after inspection

Gas Valve and Burner Maintenance

Check and clean vent tube on gas valve pressure regulator

Check burners, clean debris and grease from pilot and pilot orifice tips

Check self cleaning burner system activation

Gas Pressure and Ignition System Check

Check and adjust burner manifold gas pressure to nameplate reading

Disconnect the power supply before cleaning and servicing the appliance

Empty the contents of the crumb catch and/or filter pan into a fireproof container

Detach the pickup tube from the filter pickup assembly by unscrewing it counterclockwise

Slide off the filter paper clip and remove used filter paper from filter screen

Replace with new filter paper ensuring the hole is on the top

Fold filter paper to the underside of the filter screen and replace filter paper clip

Re-attach filter pickup tube to the filter screen by screwing it clockwise

Electrical and Power Connections

Check electrical connections and harnesses

Check IEC power cords are fully engaged and secure

Check for any air or shortening leaks and for excessive oil build-up

Check O-Ring on filter pickup tube and replace as needed

Check filter strainer on pickup tube
