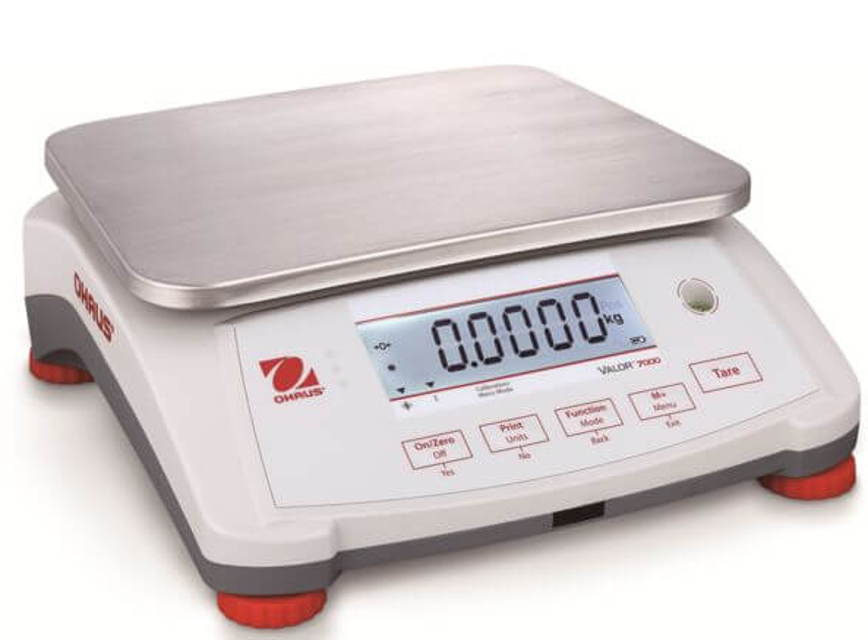

Ohaus Scales V71P15T

Use a broad knife to remove the label

Clean the glue residue from the Housing surface

Carefully place the new label where the old one was

Ensure the scale has passed the Precision and Repeatability Tests.

Ensure the scale is calibrated before performing the Linearity Test.

Place the test mass on the Scale and record the weight.

Place Load 1 on the Scale and press ON/ Zero - Off.

Place the test mass on the Scale, record the weight and remove.

Lift the battery’s front end to access the quick-connect tabs

Ensure not to short-circuit the battery leads

Pull the quick-connect tabs free of the battery posts

Position the replacement battery in the compartment at an angle to access the battery posts

Insert the quick-connect tabs on their respective posts

Place the battery fully in the battery compartment

Ensure the scale is turned off before inspection.

Move the scale to a clean, dry, dust-free area.

Remove the Pan and Sub Pan to inspect and clean the area beneath the Pan.

Clean the outside of the scale using a damp cloth with warm water.

Check the Power Cord for broken or damaged insulation.

If using the rechargeable battery, did recharging resolve any malfunctions?

Wear gloves when handling the mass

Zero the instrument if it does not read zero

Record reading 1 after placing the test mass on the center of the platform

Record reading 2 after placing the test mass on the center of the platform
