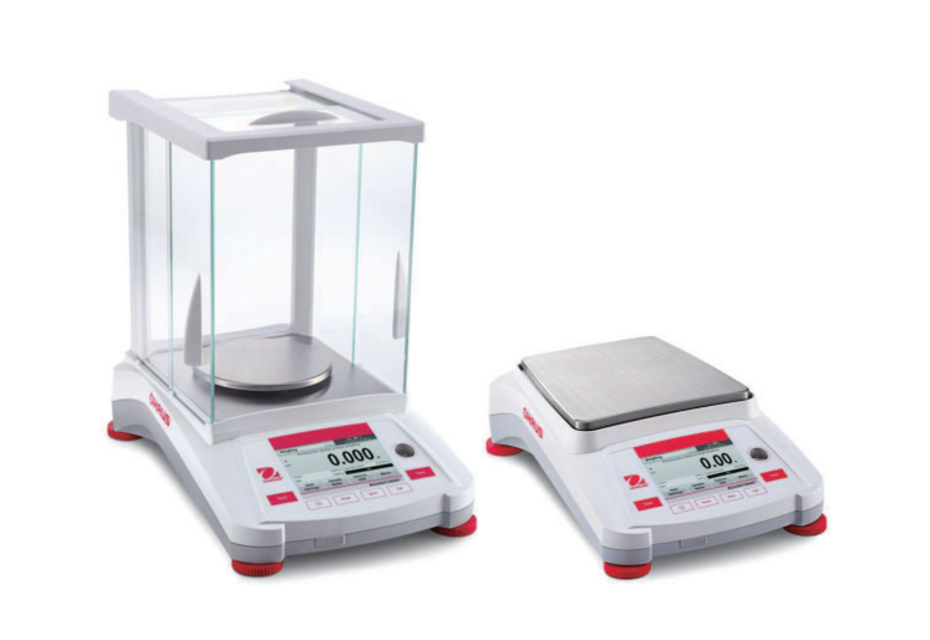

Ohaus Adventurer ™ Balances AX8201/E

Remove the balance load cell metal cover

Locate and remove the cables connecting the Conventional MFR load cell to the balance main PCBA

Locate and remove the screws securing the Conventional MFR Cell to the bottom housing

Ensure the balance is free from drafts

Set Auto-Zero to Off, in Menu Setup

Open the balance (See Section 3.1)

Plug the power cord into the balance and turn it on

Place a mass that weighs the balance’s full capacity on the center of the Pan

Press O/T (the center button) to tare the balance and return the displayed weight to 0g

Move the mass to the front, back, left and right edges of the Pan and note the displayed values

Tare the balance to ensure the reading is 0g.

Record the reading after placing a mass near the maximum capacity on the center of the Pan.

Remove the mass and check if the reading returns to 0g ±1 count.

Enter the number of times the test is repeated (should be 3).

Is the reading within ±1 count of the recorded reading for all repetitions?

Locate and remove InCal test weight components

Remove the InCal test weight using a hand with gloves on

Securely set the test weight aside

Remove the balance load cell metal cover to reveal the Block Style load cell.

Locate and remove the 2 cables connecting from the Block Style load cell to the balance main PCBA.

Locate and remove the 4 screws securing the Block Style Cell to the bottom housing.

Ensure the following components are removed

Is the area clean and free of debris?
