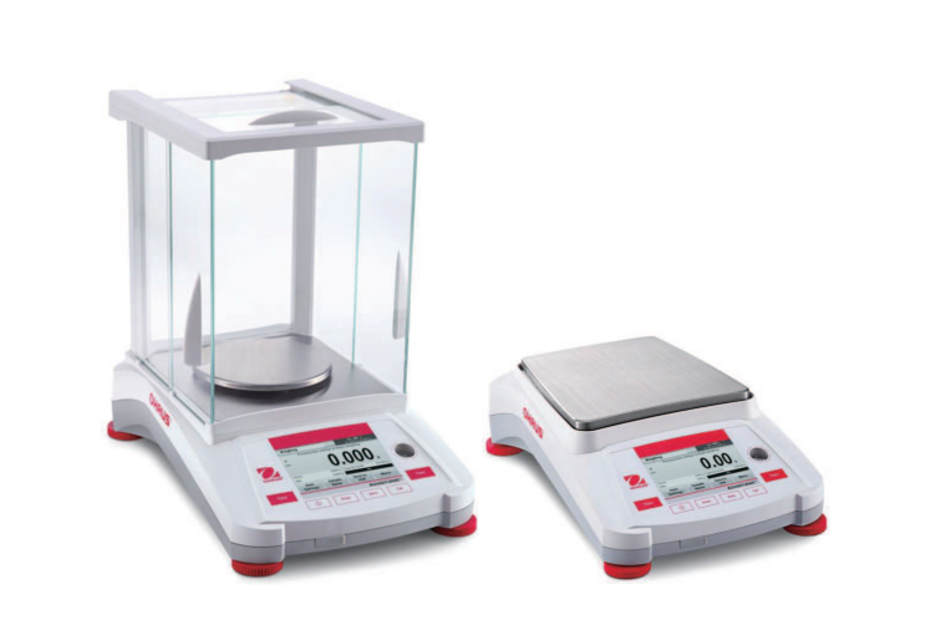

Ohaus Adventurer ™ Balances AX523M

Remove the balance load cell metal cover to reveal the Block Style load cell.

Locate and remove the 2 cables connecting from the Block Style load cell to the balance main PCBA.

Locate and remove the 4 screws securing the Block Style Cell to the bottom housing.

Is the new load cell securely attached?

Are all cables properly connected?

Remove the balance weighing pan and securely set it aside

Gently release the two hinges securing the Windring to the balance top housing

Follow the instructions for removing Adventurer housing from page 3-4

Inspect removed components for wear or damage

Describe any issues found during inspection

Verify all components are securely fastened

Tare the balance. The reading on the display should be 0g.

Select a mass weighing near the maximum capacity of the balance, and place it on the center of the Pan. Observe and record the reading.

Remove the mass. The reading should return to 0g ±1 count.

Repeat this test three times. Enter the number of successful repetitions within ±1 count of the recorded reading.

Did the balance pass the Precision Test by maintaining readings within ±1 count?

Remove the balance load cell metal cover to access the Conventional MFR load cell

Locate and remove the cables connecting the Conventional MFR load cell to the balance main PCBA

Locate and remove the screws securing the Conventional MFR Cell to the bottom housing
