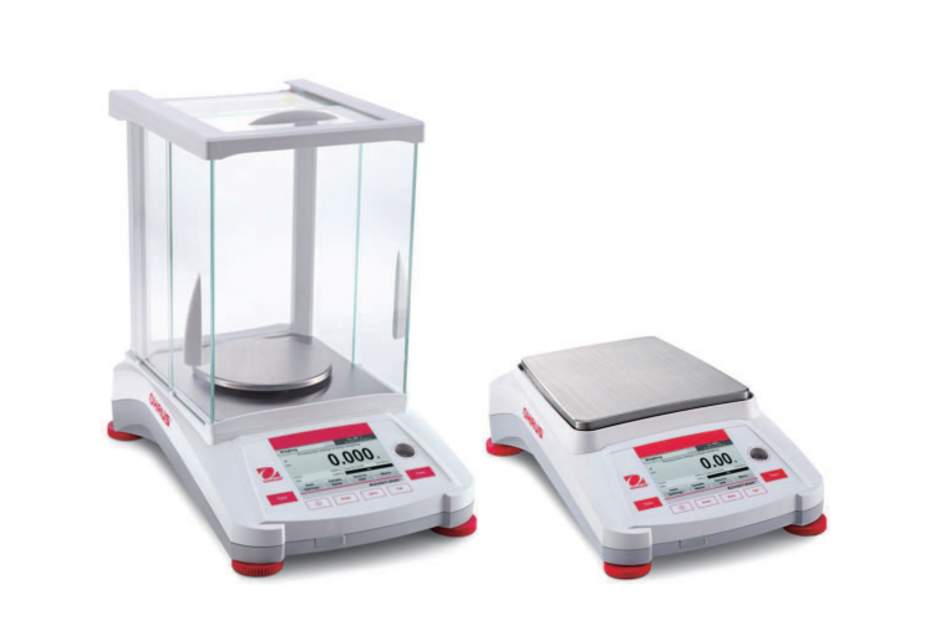

Ohaus Adventurer ™ Balances AX8201

Open the balance and remove the Load Cell

Un-solder the wires attached to the Position Sensor Board

Remove the three screws holding the Position Sensor Board

Position Sensor Board Installation

Remove the Position Sensor Board and install the replacement

Insert and finger-tighten all screws for adjustment

Locate and remove InCal components

Use gloves to handle the InCal test weight

Securely set the InCal test weight aside

Ensure the balance is free from drafts

Set Auto-Zero to Off, in Menu Setup

Open the balance (See Section 3.1)

Plug the power cord into the balance and turn it on

Place a mass that weighs the balance’s full capacity on the center of the Pan

Press O/T (the center button) to tare the balance and return the displayed weight to 0g

Note the displayed values when moving the mass to the front, back, left, and right edges of the Pan

Ensure the balance is warmed up

Verify the balance has passed the following tests

Calibrate the balance before performing the Linearity Test

Enter the full capacity of the balance

Calculate and enter the Reference Mass (approximately 1/8 of the full capacity)

Remove the Pan and Pan Support to inspect the area beneath the Pan

Clean the outside of the balance using a damp cloth with warm water

Check the Power Cord for broken or damaged insulation

Make a visual inspection for faulty connectors, wiring, and loose hardware
