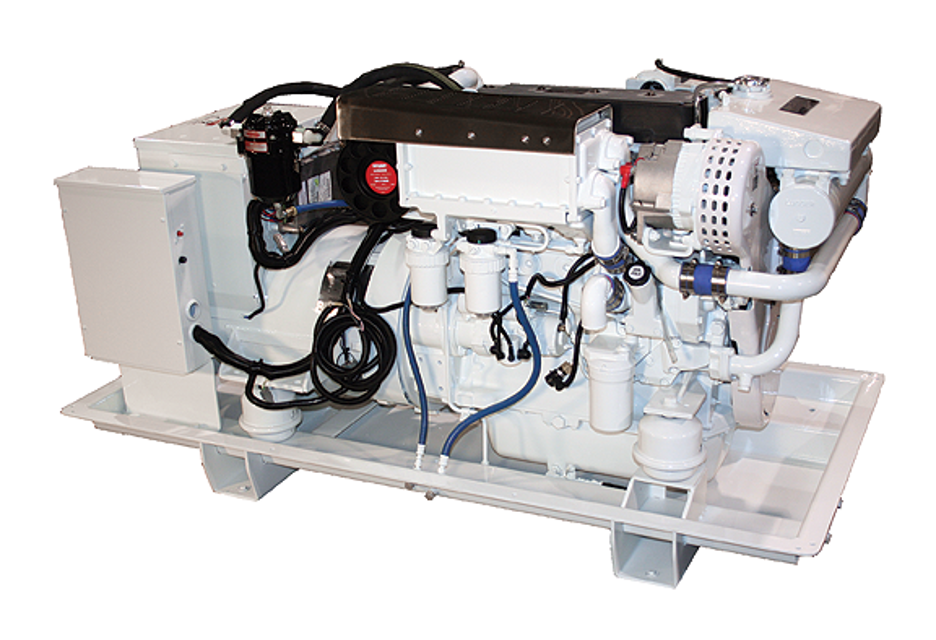

Northern Lights Diesel Generator M1066T

Use a filter wrench to remove old filter

Dispose of filter in approved manner

Ensure the gasket from the old filter is removed and discarded

Lubricate the rubber gasket on the new filter

Screw the new filter on nipple until gasket meets the sealing surface

Tighten filter one-half turn farther using hands only

Select the type of engine control system

Enter the number of hours since last replacement

Has it been 500 hours or 1 year since the last replacement?

Replace the air cleaner element

Clean the rubber tube at the cleaner

Check the condition of the rubber tube

Check for air leaks every 100 hours

Listen for whistling or hissing sounds along the air line while engine is running

Apply soapy water to the air line to detect leaks on the pressure side between turbo and engine

Perform necessary actions to fix leaks

Lubrication and Cooling Line Inspection

Check that lubrication lines are tight and without leaks

Check that cooling lines are tight and without leaks

Check the oil level using the dipstick

Is the oil level above the 'oo' mark?

Add oil of the same viscosity if needed

Change the sea water pump impeller as needed

Remove impeller with water pump pliers

Ensure all pieces of a failed impeller are removed

Clean the inside of the housing

Place the sealing washer in the outer end of the impeller center if not already done

Replace the cover using a new gasket
