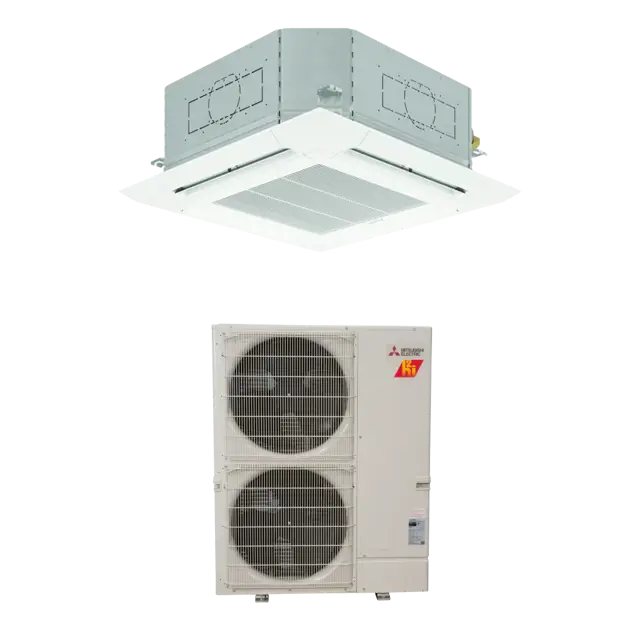

Mitsubishi Indoor Unit PLA-A36EA7
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Indoor Unit Model PLA-A36EA7
Integrate maintenance plans directly into your work orders in MaintainX.
Indoor Unit Electrical Box Replacement
Warning: Ensure the power is off before starting the procedure
Upload a photo of the electrical box cover before removal
Electrical box cover removed
Connectors removed
Upload a photo of the electrical box fixing screws before removal
Electrical box fixing screws removed
Electrical parts in the electrical box
Check all the parts present in the electrical box
Electrical box removed
Indoor Unit Float Switch Replacement
Remove the drain pan
Loosen the clamp of the drain pump
Remove the float switch (tapping screw 4×10: 1 screw/1 hook)
Reassemble the parts in reverse order
Indoor Unit Drain Pan Replacement
Upload a photo of the electrical box before removal
Electrical box removed successfully
Upload a photo of the bell mouth before removal
Bell mouth removed successfully
Upload a photo of the drain pan before removal
Drain pan removed successfully
Sign off on the drain pan replacement
Indoor Unit Indoor Controller Board Replacement
Remove the electrical box cover
Disconnect the connectors
Disconnect the connectors for optional parts, if any
For the unit controlled with the wireless remote controller, disconnect the lead wire connected to TB5 on the indoor controller board. TB5: Remote controller transmission connecting wire
Remove the indoor controller board (3 holders/4 hooks)
Reassemble the parts in reverse order
Sign off on the Indoor Unit Indoor Controller Board Replacement
Indoor Unit Electrical Box Cover Replacement
Remove the air intake grille and the filter
Upload a photo of the removed air intake grille and filter
Loosen the 2 electrical box cover fixing screws (M4×10) approximately 2 to 3 mm
Upload a photo of the loosened screws
Slide the electrical box cover toward the arrow to remove
Upload a photo of the removed electrical box cover
Reassemble the parts in reverse order
Upload a photo of the reassembled parts
Sign off on the Indoor Unit Electrical Box Cover Replacement
