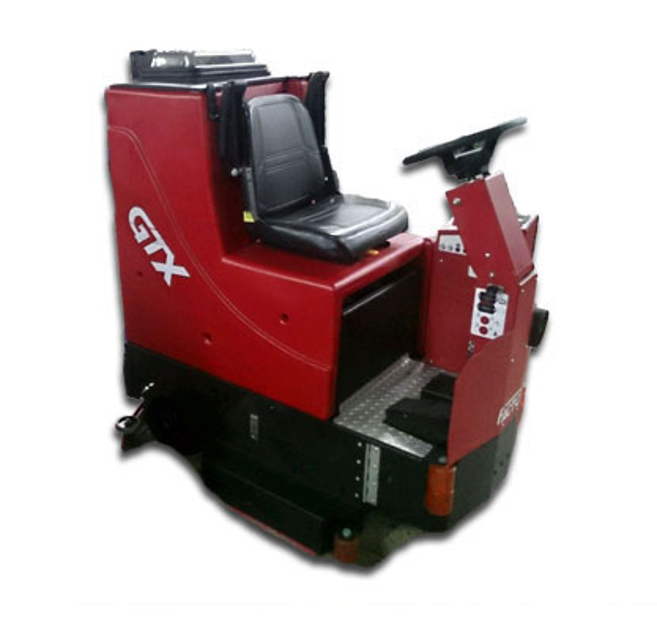

R.P.S. Corporation Rider Floor Scrubber GTX 27"-Cyl

Stop machine in a clean area next to the charger. Turn off machine.

For safety: Before leaving or servicing the machine; stop on level surface, turn off machine and remove key.

Tip back tank to expose batteries.

Disconnect main battery cables from machine.

Use the proper size wrench to disconnect main ground wire first and secure cable terminal away from batteries.

Disconnect main positive lead and secure cable and remove one at a time.

Loosen both terminals on each jumper cable and remove one at a time, and place away from machine.

Prepare a suitable site to place the batteries, store on a wood pallet, not on concrete.

The cylindrical deck comes equipped with side wipers for increased water control when turning.

Upload a picture of the cylindrical deck

To adjust the side wipers, first loosen the locking nut (A), then turn the adjusting screw (B) in to raise or out to lower the height of the side wiper blade. The spring (C) provides tension during adjustment.

Upload a picture of the side wipers adjustment

A properly adjusted side wiper will have slight blade deflection on the floor when turning.

Upload a picture of the properly adjusted side wiper

Sign off on the side wiper adjustment

Warning: Only trained personnel should perform this adjustment

Upload a picture of the squeegee before adjustment

Is the squeegee adjusted too far back?

Is the squeegee adjusted too far forward?

Upload a picture of the squeegee after adjustment

Is the squeegee adjusted just right?

Sign off on the squeegee adjustment

Observe the amount of solution the machine is dispensing on the floor and adjust to the desired flow. To increase the solution flow rate, push solution switch (A) +, to decrease push solution switch (A) -.

Keep an eye on the 'red' recovery full light (B) to make sure there is not foamy buildup in the recovery tank. If excess foam begins to develop, pour a recommended foam control solution into the recovery tank.

Always operate at lower speeds when scrubbing around walls and objects. You should reduce the speed, to maintain control when turning.

If squeegee starts to streak, raise and wipe the blades with a clean cloth. If the problem continues, check the blades for wear or damage, and rotate if needed.

Change or turn over pads when dirty. Rotate the scrub brushes every week.

Stay clear of objects protruding from the floor, such as sockets, grates, for they will damage the pads and squeegee blades.

During brief stops you should turn everything off, the brushes and solution will automatically stop when the foot pedal is released.

Always keep an eye on your gauges. They let you know the status of a particular system at a glance. If your battery gauge is reading low, you must stop immediately, and recharge. Running the batteries dead, will result in damage to the batteries.

When you run out of solution, raise the brushes, and continue to vacuum the remaining water until it is consumed. The 'yellow' low solution light (C) will light up when the solution is low and the sight tube on the back of the tank tells you how much solution is left in the tank.

Read and understand the safety section on page 5 and 6 before operating machine.

Battery condition gauge on the Central Command II LCD screen

Condition of the squeegee blades

Transport the machine to the filling station. Raise the scrub head and squeegee when transporting.

Open solution fill door on the top of the tank and fill the tank up with clean water or 'approved' detergent.
