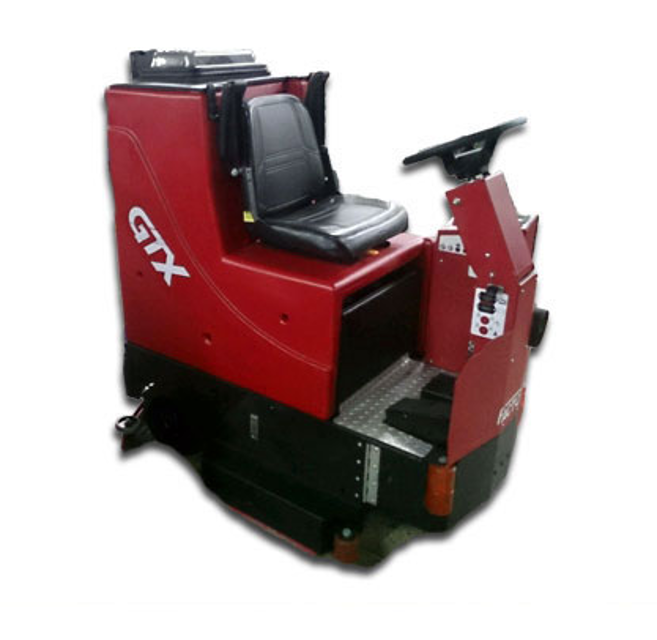

R.P.S. Corporation Rider Floor Scrubber GTX 30"-Disk

Read and understand the safety section on page 5 and 6 before operating machine.

Battery condition gauge on the Central Command II LCD screen

Condition of the squeegee blades

Transport the machine to the filling station. Raise the scrub head and squeegee when transporting.

Open solution fill door on the top of the tank and fill the tank up with clean water or 'approved' detergent.

Foam in the recovery tank is usually an indication of excessive soap.

Check battery water level in each cell of the batteries, and fill as needed

Always use distilled water to refill batteries. Batteries should be filled approximately 3/4\ to 1\" above the plates. Overfilling will cause the batteries to leak during charging. The charging process creates gas bubbles inside the battery

Clean battery tops to prevent corrosion

Rotate brushes. Rotate the left to the right and right to left. On cylindrical models from front to back, or end to end if using different materials.

Drain and rinse tanks thoroughly

To thoroughly flush out any solution chemicals in solution line and valves, refill solution tank with a few gallons of warm clean water and run machine until tank is empty.

Sign off on the weekly rider floor scrubber maintenance

Check water level of batteries after charging add distilled water if necessary

Check that recovery tank cover seals tightly

Visualy check for damaged or worn tires

Check brushes or pads for proper installation

Check that squeegee is securely attached and properly adjusted

Check that side squeegees are properly adjusted

Check for attached drain hose, plug and caps

The shroud must be adjusted correctly in order to have proper water control during turns. The front of the shroud should be slightly higher than the rear.

Upload a picture of the current shroud position

Is the front of the shroud slightly higher than the rear?

To adjust shrouds loosen knobs (A) and remove shroud.

Upload a picture of the shroud removed

Spin the RED shroud support (B) up or down to get adjustments.

Upload a picture of the adjusted RED shroud support

Once adjusted to the proper height put the shrouds back on top of adjustment supports and tighten knobs back down.

Upload a picture of the shroud after adjustment

The cylindrical deck comes equipped with side wipers for increased water control when turning.

Upload a picture of the cylindrical deck

To adjust the side wipers, first loosen the locking nut (A), then turn the adjusting screw (B) in to raise or out to lower the height of the side wiper blade. The spring (C) provides tension during adjustment.

Upload a picture of the side wipers

A properly adjusted side wiper will have slight blade deflection on the floor when turning.

Upload a picture of the properly adjusted side wiper

Sign off on the side wiper adjustment
