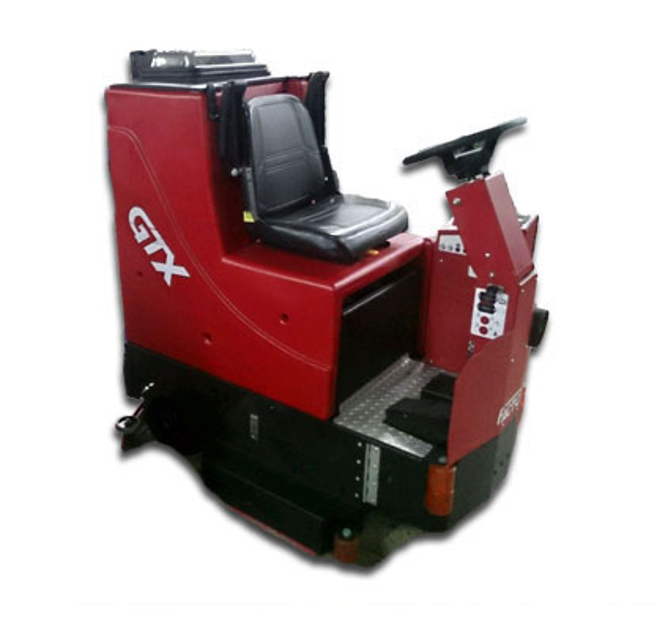

R.P.S. Corporation Rider Floor Scrubber GTX 34"-Disk

Check battery cells with hydrometer

Check battery connections are tight

NOTE: Traction drive, wheels and batteries should be serviced based on traction drive hour meter. The scrub brush hour meter should be used for all other service schedule items.

Sign off on the maintenance check

The shroud must be adjusted correctly in order to have proper water control during turns. The front of the shroud should be slightly higher than the rear.

Upload a picture of the current shroud position

Is the front of the shroud slightly higher than the rear?

To adjust shrouds loosen knobs (A) and remove shroud.

Have the knobs been loosened and the shroud removed?

Spin the RED shroud support (B) up or down to get adjustments.

Has the RED shroud support been adjusted?

Once adjusted to the proper height put the shrouds back on top of adjustment supports and tighten knobs back down.

Have the shrouds been put back on top of adjustment supports and the knobs tightened back down?

Safety: Before leaving or servicing the machine, stop on a level surface, turn off machine, and remove key.

Remove the squeegee assembly from the machine. Remove blade retainer strap and remove squeegee blade

Rotate the squeegee to new edge position or replace as required.

Install blade on the locating pins of squeegee assembly.

Install squeegee retainer strap.

Sign off on the squeegee blade replacement

Observe and adjust the solution flow rate

Check the 'red' recovery full light for foamy buildup

Operate at lower speeds when scrubbing around walls and objects

Check squeegee for streaks and clean or rotate blades if needed

Change or rotate dirty pads and scrub brushes

Avoid objects protruding from the floor

Turn off everything during brief stops

Check battery gauge and stop if reading is low

Raise brushes and vacuum remaining water when out of solution

Check battery water level in each cell of the batteries, and fill as needed. Always use distilled water to refill batteries. Batteries should be filled approximately 3/4\ to 1\" above the plates. Overfilling will cause the batteries to leak during charging. The charging process creates gas bubbles inside the battery

Clean battery tops to prevent corrosion.

Rotate brushes. Rotate the left to the right and right to left. On cylindrical models from front to back, or end to end if using different materials.

Drain and rinse tanks thoroughly. To thoroughly flush out any solution chemicals in solution line and valves, refill solution tank with a few gallons of warm clean water and run machine until tank is empty.

Sign off on the weekly rider floor scrubber maintenance
