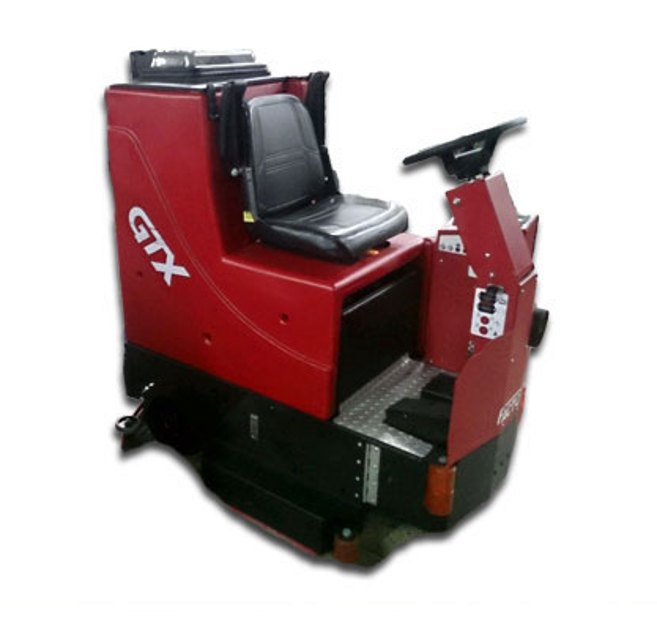

R.P.S. Corporation Rider Floor Scrubber GTX 34-C

Warning: Adjustments should be made by trained personnel only

Is the adjustment knob turned clock-wise?

Upload a picture of the squeegee after adjustment

Are the tips of the squeegee off the floor?

Upload a picture of the squeegee tips

Is the center of the rear blade spaced off the floor?

Upload a picture of the rear blade

Is the squeegee adjusted with good deflection across the entire rear blade?

Upload a picture of the adjusted squeegee

Check scrub head and squeegee lifting cables for wear and spring tension

Check machine for water leaks and loose nuts and bolts

Check to see if battery cables are tightened (Tighten if needed)

Sign off on the monthly rider floor scrubber maintenance

Check water level of batteries after charging add distilled water if necessary

Check that recovery tank cover seals tightly

Visualy check for damaged or worn tires

Check brushes or pads for proper installation

Check that squeegee is securely attached and properly adjusted

Check that side squeegees are properly adjusted

Check for attached drain hose, plug and caps

Observe and adjust the solution flow rate

Check the 'red' recovery full light for foamy buildup

Operate at lower speeds when scrubbing around walls and objects

Check squeegee for streaks and clean or rotate blades if needed

Change or rotate dirty pads and scrub brushes

Avoid objects protruding from the floor

Turn off everything during brief stops

Monitor gauges and stop immediately if battery gauge is low

Raise brushes and vacuum remaining water when out of solution

The cylindrical deck comes equipped with side wipers for increased water control when turning.

Upload a picture of the cylindrical deck

To adjust the side wipers, first loosen the locking nut (A), then turn the adjusting screw (B) in to raise or out to lower the height of the side wiper blade. The spring (C) provides tension during adjustment.

Upload a picture of the side wipers adjustment

A properly adjusted side wiper will have slight blade deflection on the floor when turning.

Upload a picture of the properly adjusted side wiper

Sign off on the side wiper adjustment
