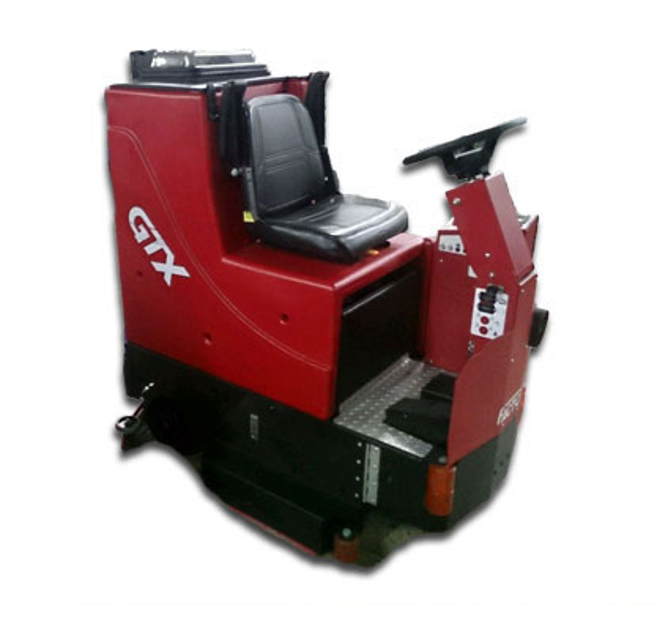

R.P.S. Corporation Rider Floor Scrubber GTX 26"-Disk

Warning: Only trained personnel should perform this adjustment

Upload a picture of the squeegee before adjustment

Is the squeegee adjusted too far back?

Is the squeegee adjusted too far forward?

Is the squeegee adjusted just right?

Upload a picture of the squeegee after adjustment

Sign off on the squeegee adjustment

Check battery water level in each cell of the batteries, and fill as needed. Always use distilled water to refill batteries. Batteries should be filled approximately 3/4\ to 1\" above the plates. Overfilling will cause the batteries to leak during charging. The charging process creates gas bubbles inside the battery

Clean battery tops to prevent corrosion.

Rotate brushes. Rotate the left to the right and right to left. On cylindrical models from front to back, or end to end if using different materials.

Drain and rinse tanks thoroughly. To thoroughly flush out any solution chemicals in solution line and valves, refill solution tank with a few gallons of warm clean water and run machine until tank is empty.

Sign off on the weekly rider floor scrubber maintenance

Check battery cells with hydrometer

Check battery connections are tight

NOTE: Traction drive, wheels and batteries should be serviced based on traction drive hour meter. The scrub brush hour meter should be used for all other service schedule items.

Is there a foamy buildup in the recovery tank?

Are you operating at lower speeds when scrubbing around walls and objects?

Did you wipe the squeegee blades with a clean cloth if it starts to streak?

Did you change or turn over pads when dirty and rotate the scrub brushes every week?

Did you stay clear of objects protruding from the floor, such as sockets, grates?

Did you turn everything off during brief stops?

Enter the battery gauge reading

Is the 'yellow' low solution light on?

Check water level of batteries after charging add distilled water if necessary

Check that recovery tank cover seals tightly

Visualy check for damaged or worn tires

Check brushes or pads for proper installation

Check that squeegee is securely attached and properly adjusted

Check that side squeegees are properly adjusted

Check for attached drain hose, plug and caps
