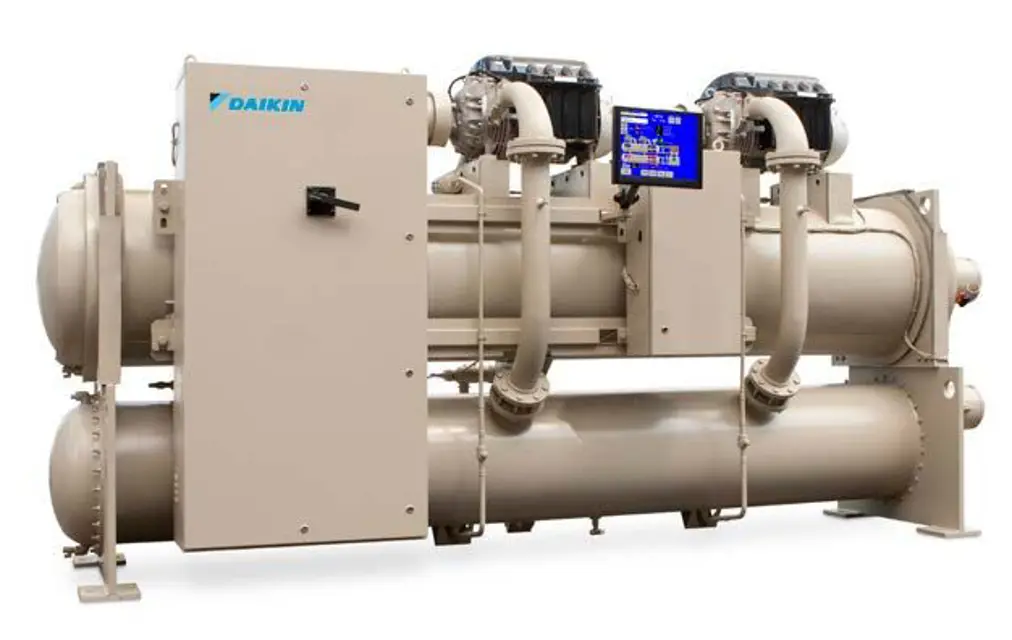

Daikin Centrifugal Chiller WMC200D

Create an account to install this asset package.

Maintenance Plans for Daikin Centrifugal Chiller Model WMC200D

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Condenser Tubes Inspection

DANGER

Wait 20 minutes after disconnecting power from unit before opening any compressor access covers. The DC link capacitors store enough energy to cause electrocution.

Key:Performed by qualified service personnel

1)Condenser Tubes: Inspect the condenser tubes annually for fouling and clean if required. The standard waterboxes should be removed with care due to their weight. One method for handling standard water boxes follows (only qualified service personnel should perform these tasks):

• After draining water, remove all but two head bolts at roughly 10 and 2 o’clock.

• Loosen the remaining two bolts to enable the head to be separated from the tube sheet sufficiently for a clevis pin or hook to be inserted into an open bolt hole at the top of the head.

• Attach a hoist to the pin or hook, lift the head to remove weight from the two remaining bolts, remove the bolts, and carefully remove the head.

• Do not try to install a machine thread eyebolt into the head vent fitting, which has pipe threads.

• Reverse this procedure to mount the head, using a new gasket.

Run this procedure

1 Monthly Chiller Inspection

Key:Performed by in-house personnel

1)II. MicroTech® II Controls

C. Retrieve and archive OITS Trend Logs

2)III. Condenser

A. Confirm correct water flow and pressure drop

B. Confirm appropriate water treatment

3)IV. Evaporator

A. Confirm correct water flow and pressure drop

B. Confirm appropriate water treatment

Run this procedure

Chiller Strainer Cleaning

DANGER: Wait 20 minutes after disconnecting power from unit before opening any compressor access covers. The DC link capacitors store enough energy to cause electrocution.

A common cause of service calls and equipment malfunction is dirt. This can be prevented with normal maintenance.

The system components most subject to dirt are:

Strainers: Remove and clean strainers in the chilled water system

Strainers: Remove and clean strainers in the condenser water system

Sign off on the chiller strainer cleaning

Run this procedure

Chiller Electrical System Maintenance

DANGER: Wait 20 minutes after disconnecting power from unit before opening any compressor access covers. The DC link capacitors store enough energy to cause electrocution.

Did you wait 20 minutes after disconnecting power?

Electrical System Maintenance

Are all connections clean and tight?

Do pump interlocks and flow switches interrupt the control circuit when tripped?

Sign off on the electrical system maintenance

Run this procedure

Chiller Maintenance

Key:Performed by qualified service personnel

Conduct Maintenance As Required By Performance

1)Condenser

C. Clean and Leak Test condenser tubes

D. Eddy Current Test - tube wall thickness
