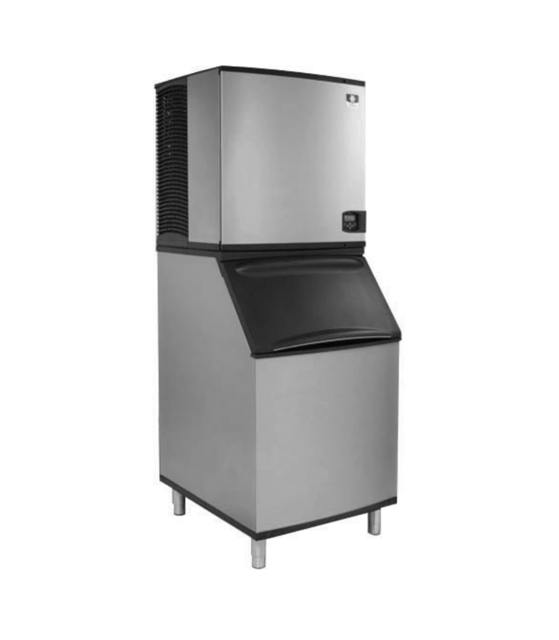

Manitowoc Refrigeration Equipment ID0606A

Ensure cleaner and sanitizer solutions are not mixed

Open the front door to access the evaporator compartment

Select method to remove ice from evaporator

Remove all ice from the bin/dispenser

Press the clean switch and wait for water trough to refill

Measure 2 ounces of Manitowoc ice machine cleaner

Mix the cleaner and water in a container

Clean all probe surfaces including all plastic parts

Thoroughly rinse probes with clean water

Gently flex the curtain in the center and remove it from the right side.

Depress tabs on right and left side of the water trough.

Allow front of water trough to drop as you pull forward to disengage the rear pins.

Pull the water level probe straight down to disengage.

Lower the water level probe until the wiring connector is visible.

Ensure you have read and understood all labels on the cleaning and sanitizing bottles.

Ensure you are wearing rubber gloves and safety goggles or face shield.

Ensure the ice machine is turned off and unplugged.

Discard all ice produced during the cleaning and sanitizing procedures.

Disassemble the ice machine and bin for cleaning.

Use Manitowoc Ice Machine Cleaner (part number 9405463) to clean mineral deposits from areas in direct contact with water.

Ensure the area around the ice machine is clear of obstacles.

Wipe surfaces with a damp cloth rinsed in water to remove dust and dirt.

Is there any greasy residue remaining?

Use a damp cloth rinsed in a mild dish soap and water solution to remove greasy residue, if necessary.

Wipe dry with a clean, soft cloth.

Ensure the following are not used during cleaning
