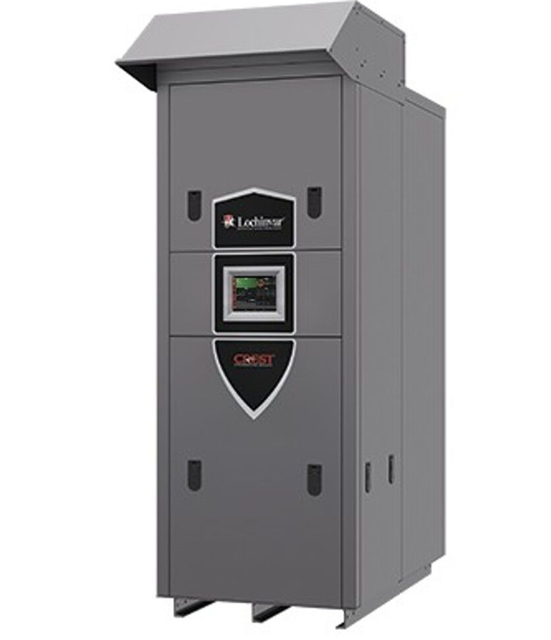

Lochinvar Condensing Boiler OFN5001

Flush the entire heating system prior to fill and start-up

Clean the entire heating system with an approved pre-commissioning cleaner

Clean all water filtering devices in the system

Flush the cleaning solution out of the entire system

Turn the main power off to the boiler by placing the 'On/Off' switch in the OFF position.

Remove the fitting from the flue collector.

Insert the probe from a combustion analyzer into the hole left by the removal of the fitting.

Turn the main power on to the boiler by placing the 'On/Off' switch in the ON position.

Navigate to the Setup Screen from the Home Screen by pressing the SETUP button along the left side of the screen.

Measure the water hardness in grains per gallon

Is the water hardness between 5 and 12 grains per gallon?

Consult local water treatment companies for hard water areas (above 12 grains per gallon hardness)

Measure the pH level of the water

Is the pH level between 6.5 and 8.5?

Total Dissolved Solids (TDS) Check

Measure the Total Dissolved Solids (TDS) in ppm

Vent any remaining air from the system using manual vents

Turn the main power switch to the “OFF” position.

Shut off gas supply at the manual gas valve in the gas piping to the appliance.

Remove the 1/8" pipe plug on the flange to the factory supplied gas shutoff valve and install a suitable 1/8" fitting for the manometer tubing.

Place the tubing of the manometer over the tap once the 1/8" fitting is installed.

Slowly turn on the gas supply at the factory installed manual gas valve.
