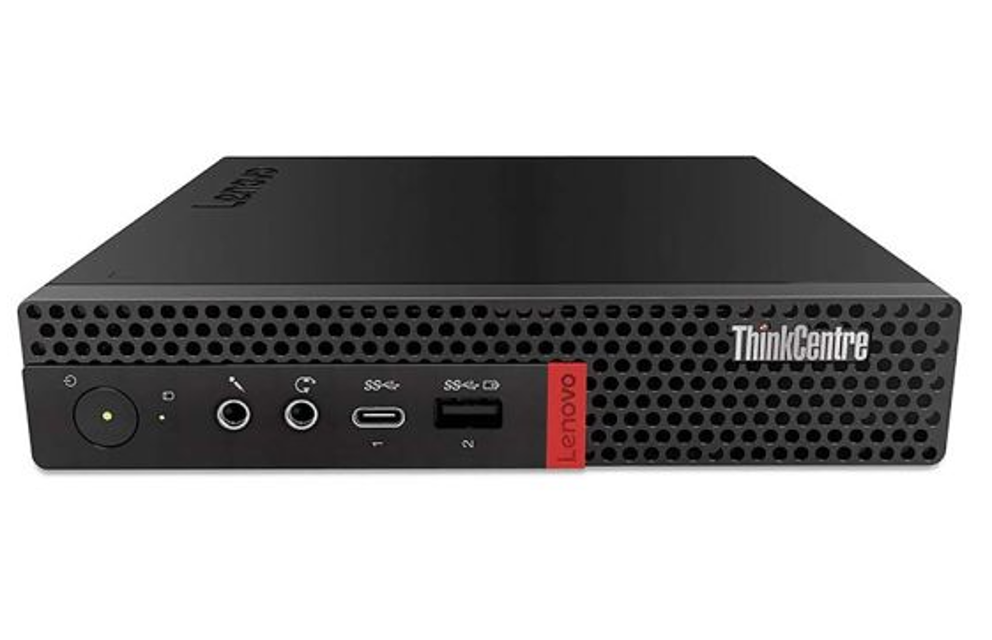

Lenovo Tiny Desktop Computer ThinkCentre M920q Type 10SY

Read the Important Product Information Guide

Storage Drive Replacement Steps

Disconnect the storage drive cable from the system board

Connect the storage drive cable to the system board

Attention: Do not open your computer or attempt any repairs before reading the Important Product Information Guide.

Remove the computer cover. See “Removing the computer cover” on page 25.

Remove the storage drive or PCI Express card.

Remove the internal speaker if necessary. See “Replacing the internal speaker” on page 31.

Remove the system fan. See “Replacing the system fan” on page 33.

Remove the heat sink. See “Replacing the heat sink” on page 34.

Remove the microprocessor. See “Replacing the microprocessor” on page 37.

Remove the advanced speaker if necessary. See “Replacing the advanced speaker” on page 32.

Read the Important Product Information Guide

Storage Drive Cable Replacement Steps

Replace the storage drive cable

Ensure all components are reassembled correctly and no tools or loose screws are left inside

Ensure cables are routed correctly before reinstalling the computer cover

Install the screw to secure the computer cover

Place the computer in an upright position

Remove any media from the drives and turn off all connected devices and the computer.

Disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer.

Replace the VESA mount bracket.

Ensure the following are reconnected

Is the computer powering on correctly after replacement?
