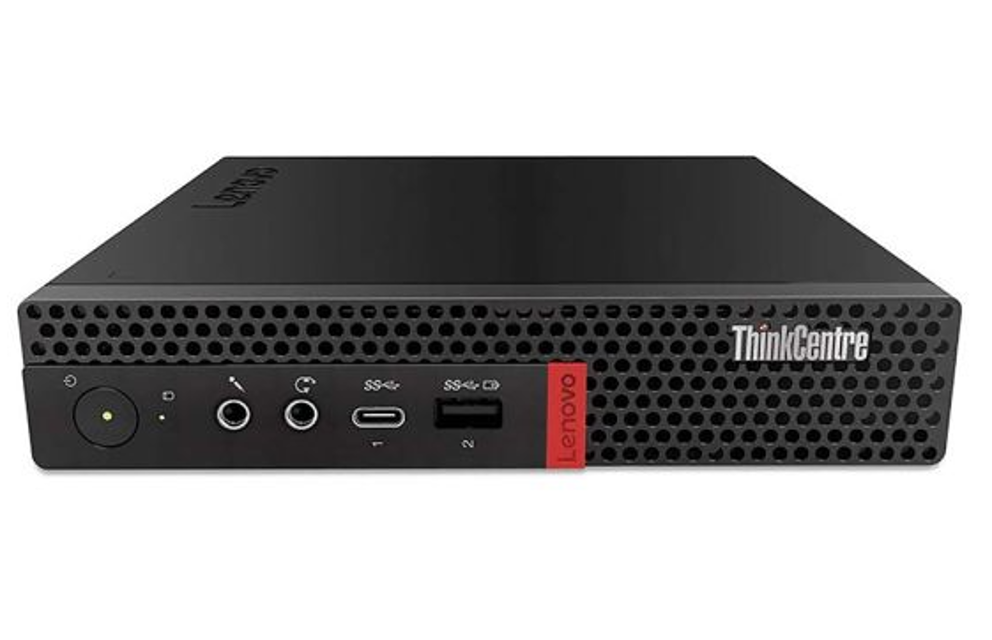

Lenovo Tiny Desktop Computer ThinkCentre M920q Type 10RU

Attention: Do not open your computer or attempt any repairs before reading the Important Product Information Guide.

Remove the computer cover. See “Removing the computer cover” on page 25.

Remove the storage drive or PCI Express card.

Remove the internal speaker if necessary. See “Replacing the internal speaker” on page 31.

Remove the system fan. See “Replacing the system fan” on page 33.

Remove the heat sink. See “Replacing the heat sink” on page 34.

Remove the microprocessor. See “Replacing the microprocessor” on page 37.

Remove the advanced speaker if necessary. See “Replacing the advanced speaker” on page 32.

Read the Important Product Information Guide

Disconnect the advanced speaker cable

Connect the advanced speaker cable

Read the Important Product Information Guide

Is the computer turned off and cool?

Remove any media from the drives

Turn off all connected devices and the computer

Disconnect all power cords from electrical outlets

Disconnect all cables connected to the computer

Ensure all components are reassembled correctly and no tools or loose screws are left inside

Ensure cables are routed correctly before reinstalling the computer cover

Install the screw to secure the computer cover

Place the computer in an upright position

Read the Important Product Information Guide

Replace the storage drive cable
