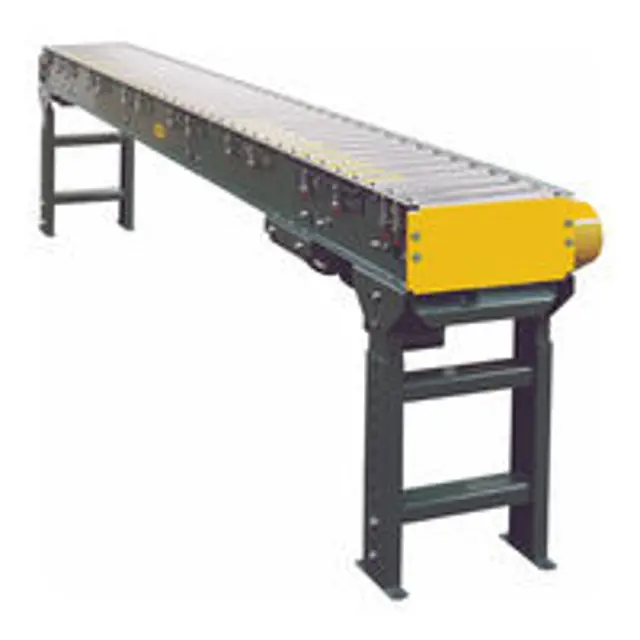

Hytrol Hytrol Conveyor 190LRSS

Warning: Proper lubrication extends the life of every drive chain.

Lubrication serves several purposes including: Protecting against wear of the pin-bushing joint, Lubricating chain-sprocket contact surfaces, Preventing rust or corrosion.

Is the drive chain pre-lubricated from the manufacturer?

Enter the hours of operation since last lubrication

Enter the date of last lubrication

Choose the type of oil used for lubrication

Was a brush used to generously lubricate the chain?

The proper viscosity of lubricant greatly affects its ability to flow into the internal areas of the chain.

The drive chain’s lubrication requirement is greatly affected by the operating conditions.

Sprockets and chain guard back plate removed

Conveyors fastened together with butt couplings and pivot plates

Chain guard back plate attached to bottom of conveyor frame

Sprockets and keys installed on shafts and aligned

Chain installed around sprockets and connecting link inserted

Chain tightened by adjusting take-up block

Chain guard front plate installed

Sign off on the external slave drive replacement

Existing belt installation noted

Belt tension adjusted per instructions

Belt take-up is provided at the spur (pointed) end of the model “LRSS”

Warning: This maintenance check requires trained personnel with PPE!

Set screws loosened and adjusted

Sign off on the drive chain maintenance
