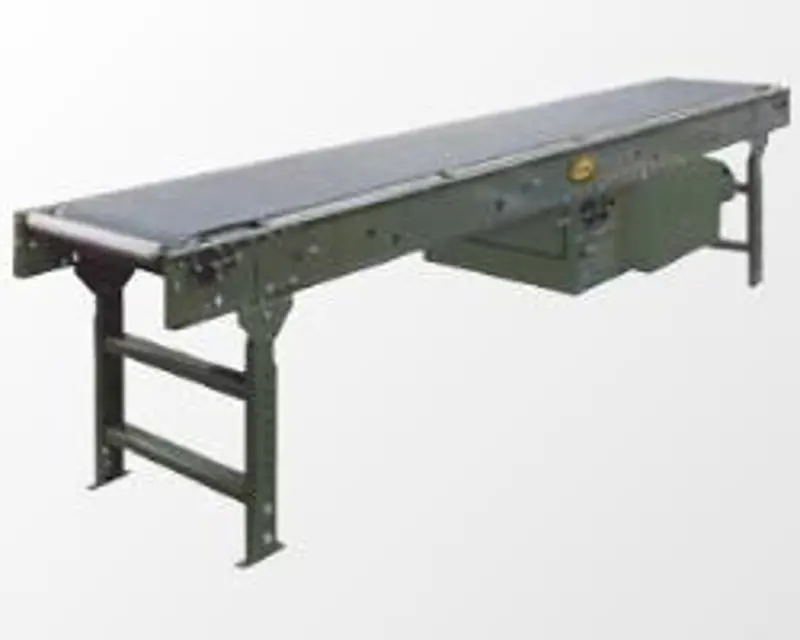

Hytrol Hytrol Conveyor 190-LR

Warning: This procedure requires trained personnel with PPE!

Drive chain pre-lubricated from the manufacturer?

Enter the date of last lubrication

Choose the type of lubricant used

Was a brush used to lubricate the chain?

Note: The proper viscosity of lubricant greatly affects its ability to flow into the internal areas of the chain.

Check if any of these harsh conditions apply

Enter any additional notes or observations

Conveyor is level across the width and length of unit

All pulleys, return idlers, and snub idlers are square with conveyor bed

Belt has been properly threaded through conveyor

Condition 1: Belt is running in the direction (FLOW) with the arrow, but tracking (drifting) towards Side “X”

Condition 2: Belt is running in the direction (FLOW) with the arrow, but tracking (drifting) towards Side “Y”

If Belt Direction (FLOW) is reversed, all the above conditions will remain the same as in Figure 22A, except you are now viewing the conveyor from the opposite end

If belt continues to track improperly, re-check all items covered in “Pre-Tracking Inspection” and make corrections as necessary.

Warning: Ensure the machine is turned off and unplugged before starting the procedure.

Determine the top and bottom sides of the belt

The bottom side of the belt will be marked 'THIS SIDE DOWN'.

Pull belt ends together and insert lacing pin

For maximum efficiency, maintain enough belt tension so drive pulley will not slip when carrying the rated load.

Adjust belt tension with the take-up pulley or tail pulley

Keep pulleys square with bed by moving both take-up bolts and equal amount

Sign off on the belt replacement

Warning: This maintenance check requires trained personnel with PPE!

Set screws loosened and adjusted

Sign off on the drive chain maintenance

Maintenance, such as lubrication and adjustments, shall be performed only by qualified and trained personnel.

It is Important that a maintenance program be established to insure that all conveyor components are maintained in a condition which does not constitute a hazard to personnel.

When a conveyor is stopped for maintenance purposes, starting devices or powered accessories shall be locked or tagged out in accordance with a formalized procedure designed to protect all person or groups involved with the conveyor against an unexpected start.

Replace all safety devices and guards before starting equipment for normal operation.

Whenever practical, DO NOT lubricate conveyors while they are in motion. Only trained personnel who are aware of the hazard of the conveyor in motion shall be allowed to lubricate.

Sign here to confirm understanding of the safety precautions
