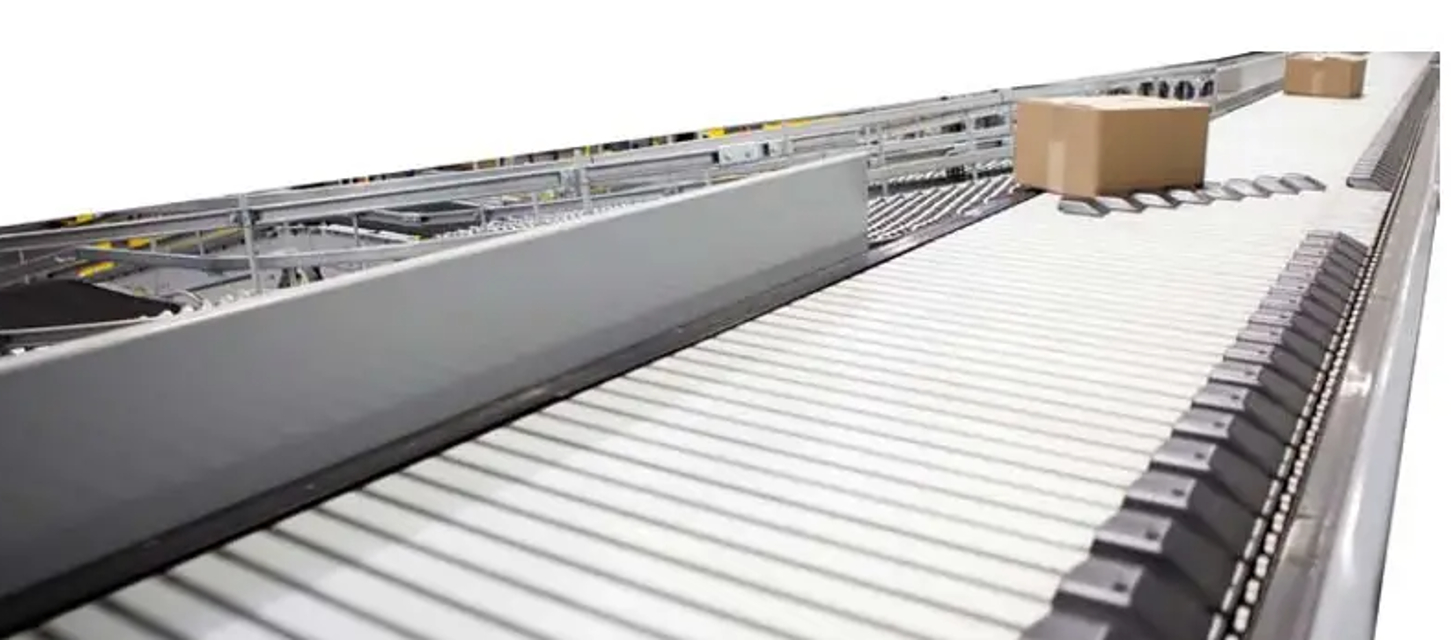

Hytrol High Speed Sortation Conveyor Prosort 400 Elite

NO GREASE FITTING - Prelubricated - No lubrication required

WITH GREASE FITTING - Relubricate approximately every 10 to 12 weeks with lithium base grease suitable for ball bearing service

Enter the type of clean non-detergent petroleum or synthetic oil used

Enter the recommendations by manufacturer

The oiler brush comes in contact with the chain for proper lubrication and increased chain life

Warning: Ensure all ProSort sections are installed and aligned before proceeding.

Manually pivot the switch back and forth between the non-divert and divert position. Is the movement free and smooth?

If there was any switch binding, what was the cause and how was it remedied?

If switch adjustment was necessary, was the jam nut on the cylinder rod loosened and retightened after adjustment?

Is each divert switch in, or moves to, the home (non-divert) position?

Is the smart prox set properly, with the face of the prox set just out of the shoe pin guide path in the switch guide?

Check Alignment with Chain Guards

NOTE: All electric divert servo motors are paired with the associated drives at the factory. Connecting motors to the wrong drive may have an adverse effect on the divert operation and could result in physical damage to the sorter. Always connect the drives to the factory paired motors to prevent damage.

Diverts are fully in either the home or diverted position

Diverts are in the home position after removing the enable signal to the Smart Prox and flagging the Smart Prox to trigger a move operation

Each time diverts are powered on, the diverter moves slowly until it finds the home position

Is the “All Systems Go” signal on before running the sorter?

Smart Prox is set properly. The face of the prox should be set just out of the shoe pin guide path in the switch guide

Sign off on the Electric Divert Switch Check
