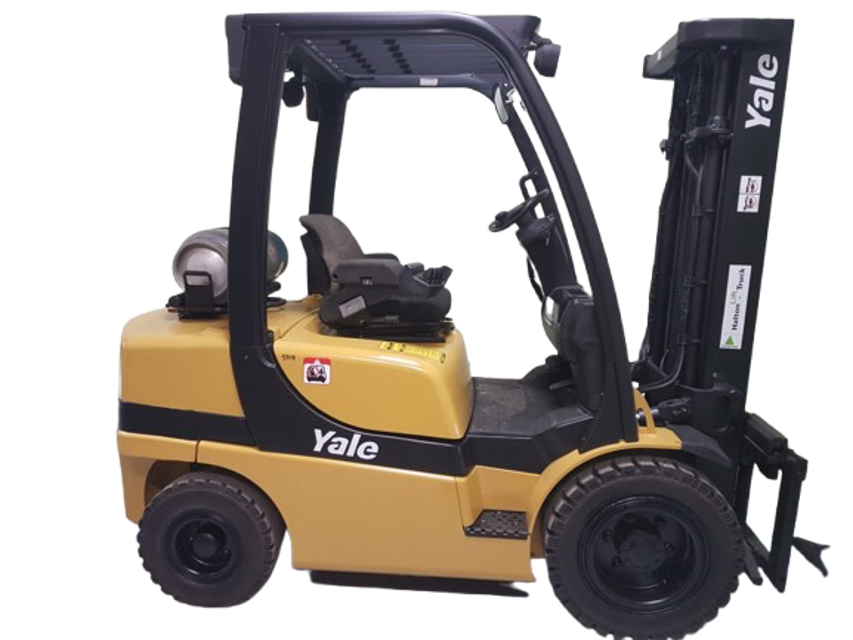

Hyster-Yale Hyster-Yale Lift Truck GLP060VXNEA087 GLP060VXNEA087

Slide seat to the closest position to steering column

Fully tilt steering column forward

It your truck is equipped with an LPG tank, swing tank off to the side

Raise latch on the left, front corner of the hood to unlatch and lift up hood

Remove floor mat and floor plate

Remove two capscrews holding left and right rear side covers to the frame. Remove rear side covers from frame

Remove two capscrews holding left and right fender covers to front overhead guard leg. Remove covers

Remove four capscrews holding left and right front side covers to frame. Remove covers

WARNING! The lift truck must be put on blocks for some types of maintenance and repairs.

Before removing the mast and drive axle, put blocks under the counterweight so the lift truck cannot fall backward

Before removing the counterweight, put blocks under the mast assembly so the lift truck cannot fall forward

Remove the seal plate for the brake and throttle pedals

Disconnect the engine wiring harness from transmission wiring harness

Disconnect transmission cooling lines

Remove the hydraulic hose between the hydraulic pump and the tank. Put a cap on the tank fitting. Remove the supply line from hydraulic pump to the main control valve

Remove the hydraulic supply (suction) hose between the variable displacement pump and hydraulic tank. Put a cap on the hydraulic tank fitting

WARNING! DO NOT operate the lift truck without the overhead guard correctly fastened to the lift truck

WARNING! DO NOT weld mounts for lights or accessories to legs of the overhead guard. Changes that are made by welding, or by drilling holes that are too big or in the wrong location, can reduce the strength of the overhead guard

See your dealer for Yale lift trucks BEFORE performing any changes to the overhead guard

NOTE: The lift trucks covered in this YRM are equipped with either a high or low overhead guard. The removal and installation procedures for both types of overhead guards are the same

No welding or drilling on legs of overhead guard is permitted as per previous WARNING

NOTE: The lifting device can be connected to any number of positions on the overhead guard depending upon the lifting device available. The ideal choices are a four point sling connected to all four corners on the top of the overhead guard, or a two point sling connected to two opposite corners of the overhead guard

If a single point hoist is used, make sure that the lift point is as close to the center of the overhead guard. If during the initial start of the lift the overhead guard is off balance lower immediately and move the hoist to a more centered point

Connect a lifting device to remove or install the overhead guard. Loosen clamp and disconnect the air intake hose from the elbow. Remove bolls, elbow, retainer, and grommet from the overhead guard rear leg

Disconnect any wires between the frame and the overhead guard. When the overhead guard is lifted from the frame, make sure that any electrical wires are moved through the holes in the frame so that they are not damaged

WARNING! Cleaning solvents can be flammable and toxic and can cause skin irritation. When using cleaning solvents, always follow the solvent manufacturer's recommended safety precautions

WARNING! Compressed air is used for cleaning and drying purposes, or for cleaning restrictions. Wear protective clothing (goggles/shields, gloves, etc.). Make sure the path of the compressed air is away from all personnel to avoid injury

Clean metal parts in solvent. Remove all traces of old lubricant and dirt.

Clean nonmetal parts with warm soapy water and a lint free cloth

After cleaning, dry parts with compressed air. DO NOT dry parts with a cloth.

Sign off on the cleaning procedure

WARNING! LPG can cause an explosion. DO NOT cause sparks or permit flammable material near the LPG system.

LPG fuel systems disconnected indoors?

Remove the floor mat and floor plate

WARNING! DO NOT remove the radiator cap from the radiator when the engine is hot.

Coolant cooled to ambient temperature?

Place a drain pan with a capacity greater than the capacity of the cooling system under radiator. Remove radiator cap

Open the drain plug or disconnect the bottom radiator hose to drain coolant from radiator and engine

Remove the hood and seat combination and rear side covers
