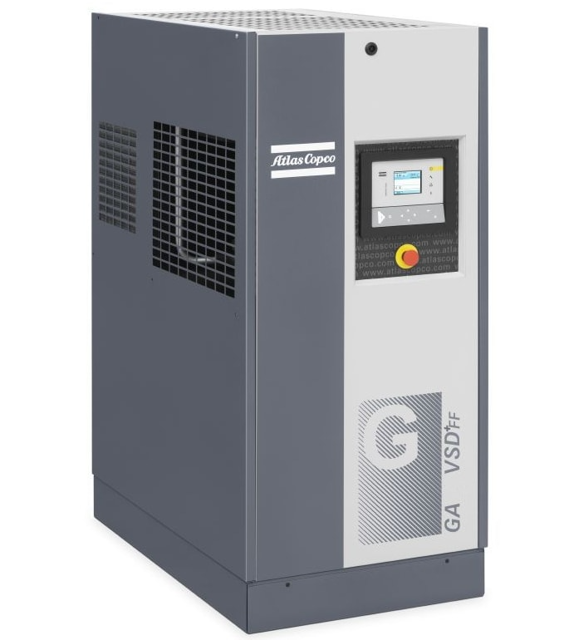

Atlas Copco Oil-Injected Rotary Screw Compressor GA22VSD+

Atlas Copco's Roto-Foodgrade Fluid is a unique high quality synthetic lubricant, specially created for oil- injected screw compressors that provide air for the food industry.

This lubricant keeps the compressor in excellent condition. Roto-Foodgrade Fluid can be used for compressors operating at ambient temperatures between 0 ̊C (32 ̊F) and 40 ̊C (104 ̊F)

If the compressor is regularly operating in ambient temperatures above 35 °C (95 °F), oil lifetime is reduced

Select the ambient temperature range

Select the element outlet temperature range

Based on the selected temperature ranges, follow the appropriate exchange interval

Ambient temperature - up to 25 °C -- Element outlet temperature - up to 90 °C: Exchange interval is 4000 Hours / 1 Year

Ambient temperature - from 25 °C up to 35 °C -- Element outlet temperature - from 90 °C up to 100 °C: Exchange interval is 3000 Hours / 1 Year

Ambient temperature - more than 35 °C -- Element outlet temperature - more than 100 °C: Exchange interval is 2000 Hours / 1 Year

Check condition of the air intake hose between air filter and compressor element

Check operation of cooling fans of converter

Check blow-off solenoid valve after stopping and pressing the emergency stop button

NOTE! The safety valve (SV) test can only be performed by authorized personnel and is protected by a security code

WARNING! No adjustments are allowed. Never run the compressor without safety valve

Safety valve opens at the set pressure stamped on the valve

Safety valve needs to be replaced?

Stop the compressor, close the air outlet valve and switch off the voltage

Cover all parts under the coolers

Remove the service plate at the fan compartment

Remove dirt from the coolers with a fibre brush. Brush in the direction of the cooling fins

Remove dirt from the fan with a fibre brush

Clean with an air jet in the reverse direction to normal flow

If it is necessary to wash the coolers with a cleaning agent, consult Atlas Copco

Mount the service plate (1) at the fan compartment

CAUTION! After maintenance on the fan and on the coolers: Remove the loose parts that are used as cover

Warning: This procedure requires trained personnel with PPE!

Select the ambient temperature range

Select the element outlet temperature range

Based on the selected temperature ranges, follow the appropriate exchange interval

Ambient temperature - up to 40 °C -- Element outlet temperature - up to 110 °C: Exchange interval is 8000 Hours / 2 Year

Ambient temperature - more than 40 °C -- Element outlet temperature - more than 110 °C: Exchange interval is 6000 Hours / 2 Year

Was the Roto-Xtend Duty Fluid replaced according to the specified interval?

Sign off on the Roto-Xtend Duty Fluid replacement
