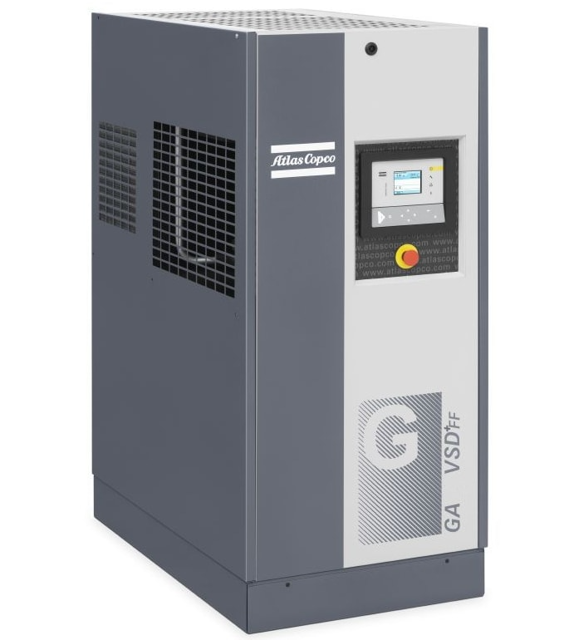

Atlas Copco Oil-Injected Rotary Screw Compressor GA26VSD+FF

Warning: Ensure the compressor is stopped and voltage is switched off before proceeding.

Cover of the air filter removed by turning it anti-clockwise?

Air filter service warning reset?

Sign off on the air filter element replacement

NOTE! The safety valve (SV) test can only be performed by authorized personnel and is protected by a security code

WARNING! No adjustments are allowed. Never run the compressor without safety valve

Enter the set pressure stamped on the valve

Did the safety valve open at the set pressure?

Does the safety valve need to be replaced?

Warning: This procedure requires trained personnel with PPE!

Is the compressor operating in ambient temperatures above 40 °C (104 °F)?

If YES, the oil lifetime is reduced and the exchange interval is 6000 Hours / 2 Year.

If NO, the exchange interval is 8000 Hours / 2 Year.

Enter the current operating hours of the compressor

Enter the date of the last oil change

Did the compressor pass the post-maintenance test?

Sign off on the Roto-Xtend Duty Fluid Replacement

Check oil level. If needed, top up the oil

Check that condensate is discharged during operation

Compressor stopped and air outlet valve closed

Upload a photo of the condenser inlet before cleaning

Dirt removed from the condenser inlet with a vacuum cleaner

Condenser cleaned with an air jet in the reverse direction to normal flow using low pressure air

Compressed air nozzle kept more than 30 cm away from the condenser

Upload a photo of the condenser after cleaning

Dust removed from inside the dryer with a vacuum cleaner

Water or solvents not used for cleaning
