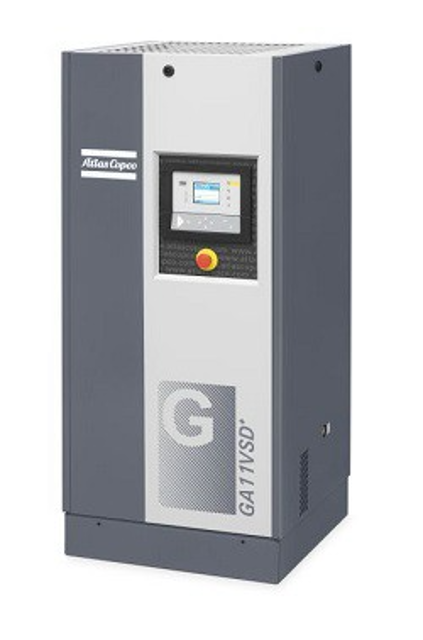

Atlas Copco Oil-Injected Rotary Screw Compressor GA15VSD+

WARNING! The operator must apply all relevant Safety precautions

Always drain the compressor oil at all drain points. Used oil left in the compressor can contaminate the oil system and can shorten the lifetime of the new oil

Never mix lubricants of different brands or types as they may not be compatible and the oil mix will have inferior properties. A label, indicating the type of oil filled ex-factory, is stuck on the air receiver/oil tank

Run the compressor until warm and stop the compressor

Close the air outlet valve and switch off the voltage

Wait 3 minutes for the compressor to depressurise the vessel

Open the condensate drain valve to depressurise the cooler. (see condensate system) and close again

Unscrew the oil filler plug (FC) just one turn to permit any remaining pressure in the system to escape

Cover the duct of the heat sink on the electric cabinet

Check oil level. If needed, top up the oil

Check that condensate is discharged during operation

Check coolers, clean if necessary

Remove the air filter element and inspect. Replace damaged or heavily contaminated elements

Check the filter elements of the electric cabinet. Replace if necessary

Check condition of the air intake hose between air filter and compressor element

Check operation of cooling fans of converter

Check blow-off solenoid valve after stopping and pressing the emergency stop button

Warning: This procedure requires trained personnel with PPE!

Is the compressor in excellent condition?

Enter the element outlet temperature

Select the exchange interval based on the temperatures

Sign off on the Roto-Xtend Duty Fluid Replacement
