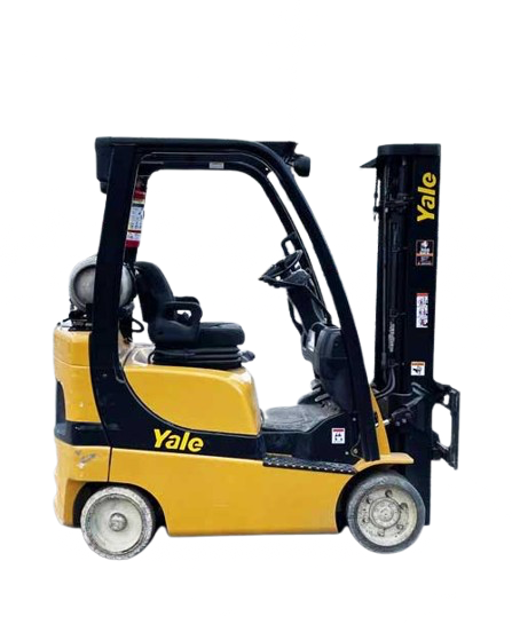

Hyster-Yale Hyster-Yale Lift Truck GLC035VX GLC035VX

WARNING! Cleaning solvents can be flammable and toxic and can cause skin irritation. When using cleaning solvents, always follow the solvent manufacturer's recommended safety precautions

WARNING! Compressed air is used for cleaning and drying purposes, or for cleaning restrictions. Wear protective clothing (goggles/shields, gloves, etc.). Make sure the path of the compressed air is away from all personnel to avoid injury

Clean metal parts in solvent. Remove all traces of old lubricant and dirt.

Clean nonmetal parts with warm soapy water and a lint free cloth

After cleaning, dry parts with compressed air. DO NOT dry parts with a cloth.

Sign off on the cleaning procedure

WARNING! DO NOT operate the lift truck without the overhead guard correctly fastened to the lift truck

WARNING! DO NOT weld mounts for lights or accessories to legs of the overhead guard. Changes that are made by welding, or by drilling holes that are too big or in the wrong location, can reduce the strength of the overhead guard

See your dealer for Yale lift trucks BEFORE performing any changes to the overhead guard

NOTE: The lift trucks covered in this YRM are equipped with either a high or low overhead guard. The removal and installation procedures for both types of overhead guards are the same

No welding or drilling on legs of overhead guard is permitted as per previous WARNING

NOTE: The lifting device can be connected to any number of positions on the overhead guard depending upon the lifting device available. The ideal choices are a four point sling connected to all four corners on the top of the overhead guard, or a two point sling connected to two opposite corners of the overhead guard

If a single point hoist is used, make sure that the lift point is as close to the center of the overhead guard. If during the initial start of the lift the overhead guard is off balance lower immediately and move the hoist to a more centered point

Connect a lifting device to remove or install the overhead guard. Loosen clamp and disconnect the air intake hose from the elbow. Remove bolls, elbow, retainer, and grommet from the overhead guard rear leg

Disconnect any wires between the frame and the overhead guard. When the overhead guard is lifted from the frame, make sure that any electrical wires are moved through the holes in the frame so that they are not damaged

Seat belt extends and retracts smoothly

Seat belt is not frayed or torn

Seat belt operation check 1: Seat belt pulls out and retracts smoothly with the hood closed and locked

Seat belt operation check 2: Seat belt will not pull from the retractor assembly when pulled with a sudden jerk with the hood closed and locked

Seat belt operation check 3: Seat belt will not pull from the retractor assembly with the hood in the open position

Seat rails and latch striker are not loose

Inspect for loose, burned, missing, cracked or damaged hardware

Inspect all parts for dents, holes, bends, burrs, rust, corrosion or marred finishes

Replace all defective or damaged parts;

WARNING! The lift truck must be put on blocks for some types of maintenance and repairs.

The removal of the following assemblies will cause large changes in the center of gravity: mast, drive axle, engine, trans-mission, and counterweight.

When the lift truck is put on blocks put additional blocks in the following positions to maintain stability

Before removing the mast and drive axle, put blocks under the counterweight so the lift truck cannot fall backward

Before removing the counterweight, put blocks under the mast assembly so the lift truck cannot fall forward

WARNING! The transmission is heavy. Make sure that any lifting device has enough capacity to lift the weight. The transmission can weigh approximately 84 kg (185 lb)

Remove the seal plate for the brake and throttle pedals

Disconnect the engine wiring harness from transmission wiring harness
