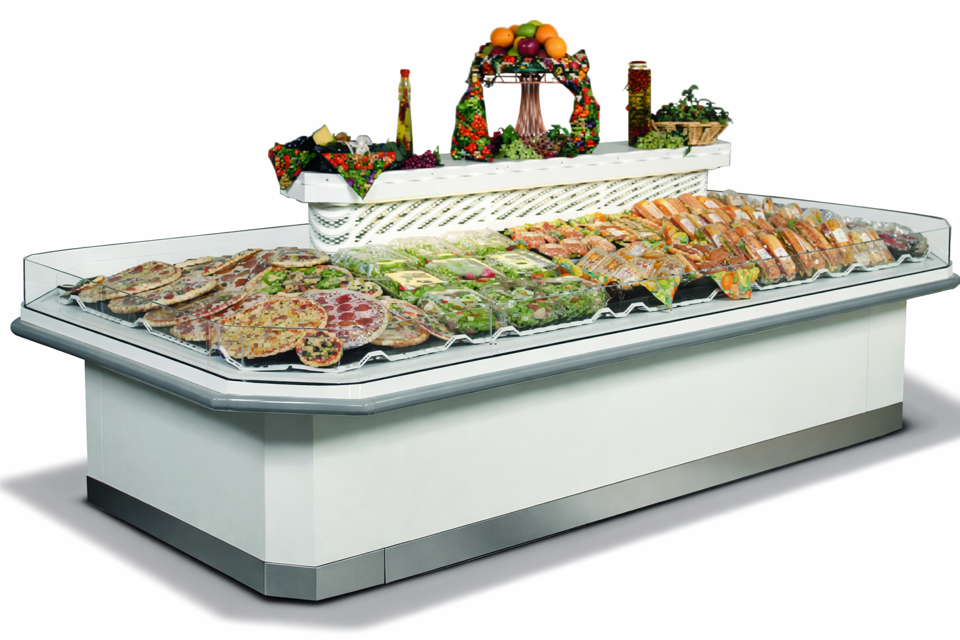

Hussmann Island and Multi-deck Island SI1

Create an account to install this asset package.

Maintenance Plans for Hussmann Island and Multi-deck Island Model SI1

Integrate maintenance plans directly into your work orders in MaintainX.

Drain Fitting Replacement

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights.

Drill with a 17/8-in. (48 mm) hole saw to drill out the bottom of the drain fitting. Be sure to drill completely through fitting and bottom liner.

Apply teflon tape to threaded end of adapter and screw into threaded end of tee.

Apply an ABS and PVC compatible primer and sealer to adapter and inside of drain. Insert adapter into drain fitting.

Sign off on the drain fitting replacement

Run this procedure

1 Weekly Merchandiser Cleaning

CARE AND CLEANING

Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, these merchandisers should be thoroughly cleaned, all debris removed and the interiors washed down, weekly.

Allow the case to cool for at least 45 minutes before cleaning.

WARNING

ALWAYS SHUT POWER OFF DURING CLEANING PROCESS.

Fans

Fans should be shut off at the source. All deck pans and air grilles are removable.

CAUTION

Coil fins are sharp and pose risk of bodily injury - use extreme care when cleaning around them.

Run this procedure

1 Monthly Center Air Discharge Tower Cleaning

Warning: Disconnect the electrical power to the merchandiser before starting the cleaning process

Product removed to cooler

Electrical power to the merchandiser disconnected

Compressed air applied to the moiré of the CAD

Interior wiped down with a soft cloth

Was a mild detergent and sanitizing solution used?

Excess water not introduced

Power to merchandiser turned on

Operating temperature reached

Run this procedure

Fluorescent Lamps Replacement

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Fluorescent lamps have a shatterproof protective coating?

Is the switch in the canopy operating both the canopy and the shelf lamps?

Is the rail lamp switch located on the rail?

Sign off on the lamp replacement

Run this procedure

Mirrors Cleaning

Warning: Keep all liquids away from the coated side of the mirrors.

Warning: Do NOT spray liquids on the mirrors. Dampen the cleaning cloth, then use the cloth to wipe the mirror.

Warning: Wipe water from the mirrors immediately to prevent difficult to remove water spots and also to prevent the water from reaching the mirror's edge.

Warning: Never use dirty cloths, scrapers or any other abrasive materials for cleaning.

Did you use only mild glass cleaning products or a weak solution of vinegar and water?

Did you dampen the cleaning cloth before wiping the mirror?

Did you wipe water from the mirrors immediately?

Did you avoid using dirty cloths, scrapers or any other abrasive materials for cleaning?

Sign off on the mirror cleaning

Run this procedure
