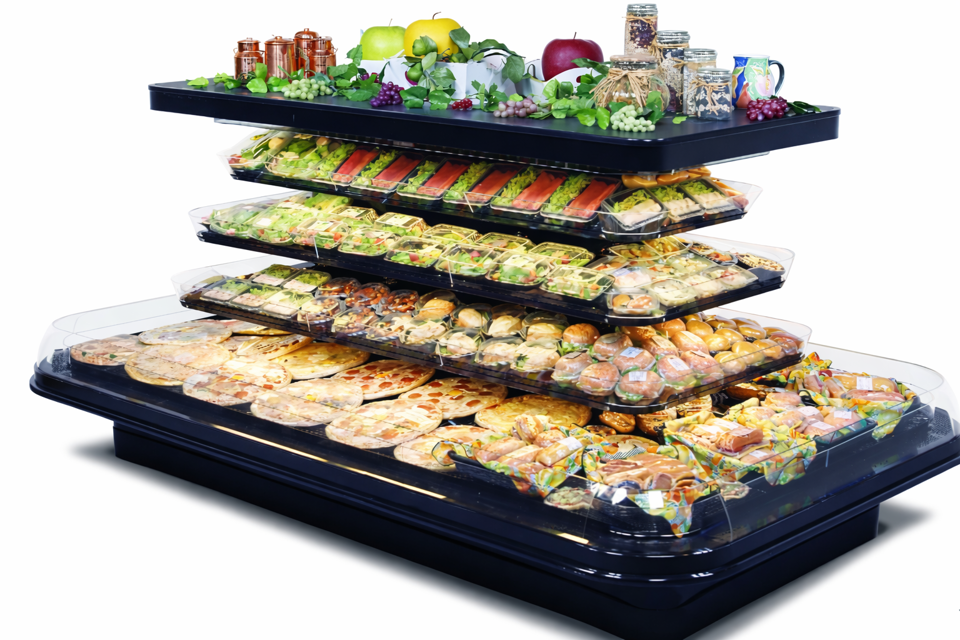

Hussmann Island and Multi-deck Island SI3

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights.

Drill with a 17/8-in. (48 mm) hole saw to drill out the bottom of the drain fitting. Be sure to drill completely through fitting and bottom liner.

Apply teflon tape to threaded end of adapter and screw into threaded end of tee.

Apply an ABS and PVC compatible primer and sealer to adapter and inside of drain. Insert adapter into drain fitting.

Sign off on the drain fitting replacement

WARNING: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights.

Power to the merchandiser disconnected?

Side splashguard and base panels removed?

Select the location of the ballasts

Ballast replaced and parts reassembled in reverse order?

Sign off on the electronic ballasts replacement

Warning: Mirrors are sheets of clear glass that have very thin reflective and protective coatings applied to one side. These coatings are susceptible to deterioration if certain cleaning solutions and even water are allowed to come in contact with them.

Every precaution should be taken to keep all liquids away from the coated side of the mirrors.

IF LIQUIDS ARE ALLOWED TO FLOW ALONG THE FACE SIDE OF THE MIRROR TO ITS EDGE, THE LIQUID CAN SEEP UP BETWEEN THE COATING AND THE GLASS, CAUSING SERIOUS DAMAGE.

To Help Prolong the Life of the Mirrors:

Use only mild glass cleaning products or a weak solution of vinegar and water.

Do NOT spray liquids on the mirrors. Dampen the cleaning cloth, then use the cloth to wipe the mirror.

Wipe water from the mirrors immediately to prevent difficult to remove water spots and also to prevent the water from reaching the mirror's edge.

Never use dirty cloths, scrapers or any other abrasive materials for cleaning.

Sign off on the mirror cleaning

Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, these merchandisers should be thoroughly cleaned, all debris removed and the interiors washed down, weekly.

Allow the case to cool for at least 45 minutes before cleaning.

ALWAYS SHUT POWER OFF DURING CLEANING PROCESS.

Fans should be shut off at the source. All deck pans and air grilles are removable.

Coil fins are sharp and pose risk of bodily injury - use extreme care when cleaning around them.

Warning: Disconnect the electrical power to the merchandiser before starting the cleaning process

Electrical power to the merchandiser disconnected

Compressed air applied to the moiré of the CAD

Interior wiped down with a soft cloth

Was a mild detergent and sanitizing solution used?

Power to merchandiser turned on
