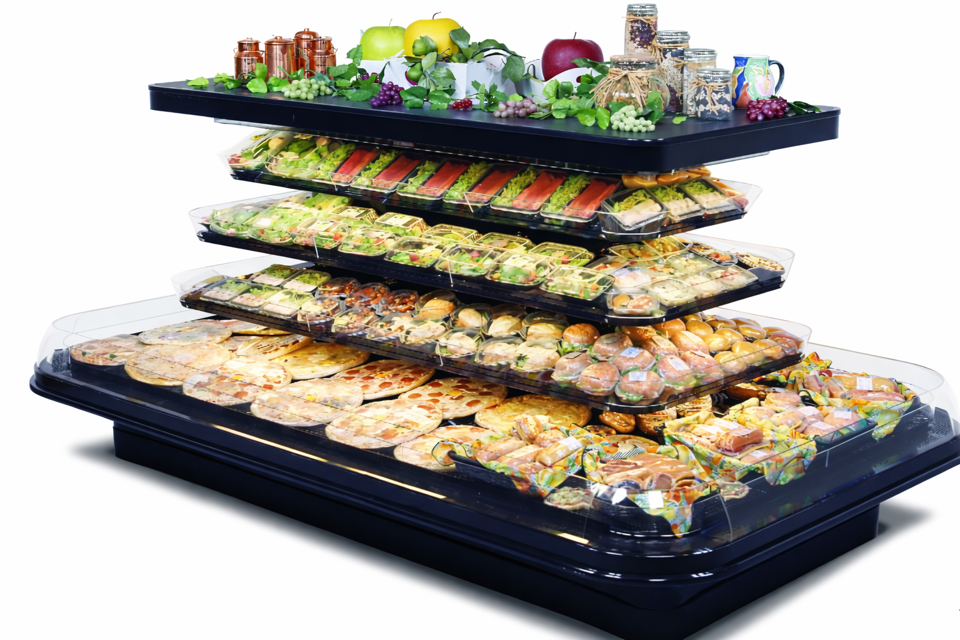

Hussmann Island and Multi-deck Island RI4

WARNING: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights.

Power to the merchandiser disconnected

Side splashguard and base panels removed

Parts reassembled in reverse order

Sign off on the ballast replacement

REPLACING DAMAGED DRAIN FITTING

The following procedure is for the field repair of a broken drain fitting.

Use a drill with a 17/8-in. (48 mm) hole saw to drill out the bottom of the drain fitting. Be sure to drill completely through fitting and bottom liner.

Apply teflon tape to threaded end of adapter and screw into threaded end of tee.

Apply an ABS and PVC compatible primer and sealer to adapter and inside of drain. Insert adapter into drain fitting.

Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights.

Sign off on the drain fitting replacement

DO NOT USE AMMONIA-BASED PRODUCTS TO CLEAN ACRYLIC PARTS. NEVER USE ABRASIVE CLEANSERS OR SCOURING PADS.

Clean with nonabrasive detergent and lukewarm water, using the bare hand to feel and dislodge any caked-on dirt. A soft, grit-free cloth, sponge or chamois may be used, but only as a means of carrying the water to the plastic.

Dry with a clean damp chamois or clean soft cloth such as cotton flannel. Do not use hard, rough cloth or paper towels as they will scratch the acrylic.

Wax should be applied in a thin even coat, and brought to a high polish by rubbing lightly with a clean, dry soft cloth, such as a cotton flannel.

Excessive rubbing may cause scratching and/or build up an electrostatic charge which attracts contaminants. Remove an electrostatic charge by blotting with a clean damp cloth.

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Is the electrical power disconnected?

Always replace lamp holders and end caps with Hussmann lamp holders.

Are you using Hussmann lamp holders?

Upload a photo of the replaced lamp holder

Sign off on the lamp holder replacement

Warning: This procedure requires trained personnel with PPE!

Merchandiser performing poorly due to dirty honeycombs?

If merchandiser is performing poorly, proceed with the following steps

DISCONNECT THE ELECTRICAL POWER TO THE MERCHANDISER

Honeycomb compressed and removed from its retainer?

After cleaning, replace in reverse order
