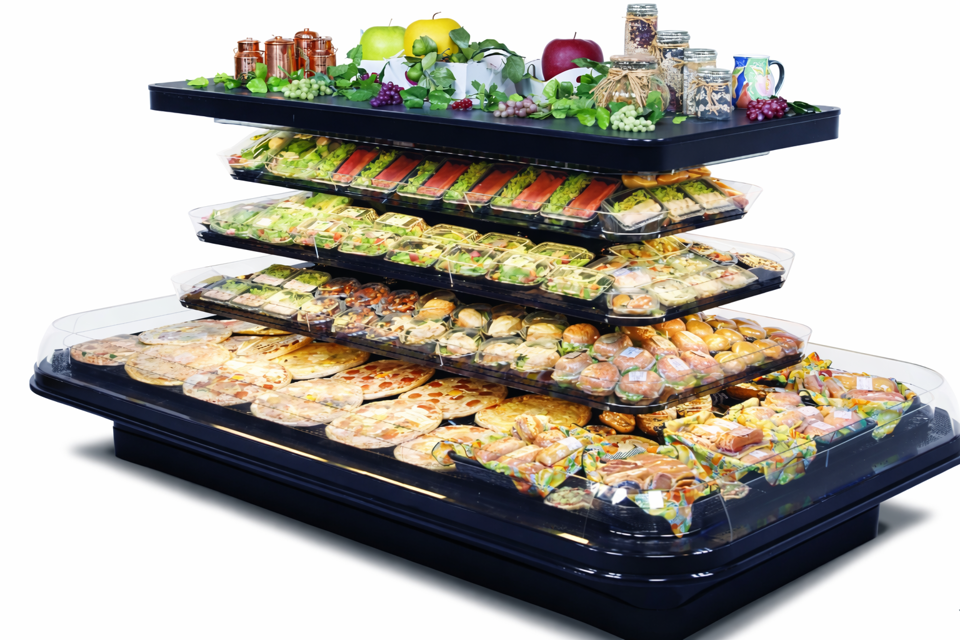

Hussmann Island and Multi-deck Island RI3N

WARNING: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights.

Power to the merchandiser disconnected

Side splashguard and base panels removed

Parts reassembled in reverse order

Sign off on the ballast replacement

Warning: Mirrors are sheets of clear glass that have very thin reflective and protective coatings applied to one side. These coatings are susceptible to deterioration if certain cleaning solutions and even water are allowed to come in contact with them.

Every precaution should be taken to keep all liquids away from the coated side of the mirrors.

IF LIQUIDS ARE ALLOWED TO FLOW ALONG THE FACE SIDE OF THE MIRROR TO ITS EDGE, THE LIQUID CAN SEEP UP BETWEEN THE COATING AND THE GLASS, CAUSING SERIOUS DAMAGE.

To Help Prolong the Life of the Mirrors:

Use only mild glass cleaning products or a weak solution of vinegar and water.

Do NOT spray liquids on the mirrors. Dampen the cleaning cloth, then use the cloth to wipe the mirror.

Wipe water from the mirrors immediately to prevent difficult to remove water spots and also to prevent the water from reaching the mirror's edge.

Never use dirty cloths, scrapers or any other abrasive materials for cleaning.

Sign off on the mirror cleaning

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights.

Drill with a 17/8-in. (48 mm) hole saw to drill out the bottom of the drain fitting. Did you drill completely through fitting and bottom liner?

Apply teflon tape to threaded end of adapter and screw into threaded end of tee. Was this done correctly?

Apply an ABS and PVC compatible primer and sealer to adapter and inside of drain. Insert adapter into drain fitting. Was this done correctly?

Sign off on the drain fitting replacement

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Fluorescent lamps have shatterproof protective coating?

Upload a photo of the replaced lamp

Sign off on the lamp replacement

Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, these merchandisers should be thoroughly cleaned, all debris removed and the interiors washed down, weekly.

Allow the case to cool for at least 45 minutes before cleaning.

ALWAYS SHUT POWER OFF DURING CLEANING PROCESS.

Fans should be shut off at the source. All deck pans and air grilles are removable.

Coil fins are sharp and pose risk of bodily injury - use extreme care when cleaning around them.
