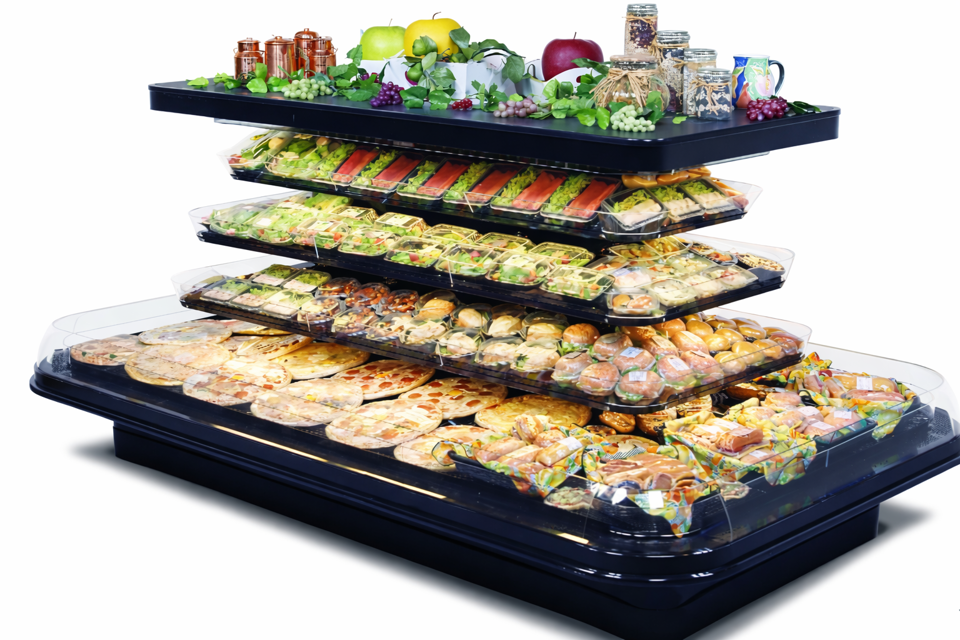

Hussmann Island and Multi-deck Island SI2

Create an account to install this asset package.

Maintenance Plans for Hussmann Island and Multi-deck Island Model SI2

Integrate maintenance plans directly into your work orders in MaintainX.

Drain Fitting Replacement

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights.

Drill with a 17/8-in. (48 mm) hole saw to drill out the bottom of the drain fitting. Be sure to drill completely through fitting and bottom liner.

Apply teflon tape to threaded end of adapter and screw into threaded end of tee.

Apply an ABS and PVC compatible primer and sealer to adapter and inside of drain. Insert adapter into drain fitting.

Sign off on the drain fitting replacement

Run this procedure

Fluorescent Lamps Replacement

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Fluorescent lamps have a shatterproof protective coating?

Select the switch that operates the lamps

Upload a photo of the replaced lamp

Sign off on the lamp replacement

Run this procedure

Fan Motors and Blades Replacement

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Turn off power

Remove bottom display racks and deck pans.

Disconnect fan from wiring harness.

Remove fan blade.

Lift fan plenum and remove screws holding bottom of motor to fan basket.

Replace fan motor and blade.

Lower fan plenum.

Reconnect fan to wiring harness.

Run this procedure

Mirrors Cleaning

Warning: Mirrors are sheets of clear glass that have very thin reflective and protective coatings applied to one side. These coatings are susceptible to deterioration if certain cleaning solutions and even water are allowed to come in contact with them.

Every precaution should be taken to keep all liquids away from the coated side of the mirrors.

IF LIQUIDS ARE ALLOWED TO FLOW ALONG THE FACE SIDE OF THE MIRROR TO ITS EDGE, THE LIQUID CAN SEEP UP BETWEEN THE COATING AND THE GLASS, CAUSING SERIOUS DAMAGE.

To Help Prolong the Life of the Mirrors:

Select the cleaning products used

Did you spray liquids on the mirrors?

Did you wipe water from the mirrors immediately to prevent difficult to remove water spots and also to prevent the water from reaching the mirror's edge?

Did you use dirty cloths, scrapers or any other abrasive materials for cleaning?

Sign off on the mirror cleaning

Run this procedure

1 Monthly Center Air Discharge Tower Cleaning

Warning: Disconnect the electrical power to the merchandiser before starting the cleaning process

Product removed to cooler

Electrical power to the merchandiser disconnected

Compressed air applied to the moiré of the CAD

Interior wiped down with a soft cloth

Was a mild detergent and sanitizing solution used?

Excess water not introduced

Power to merchandiser turned on
