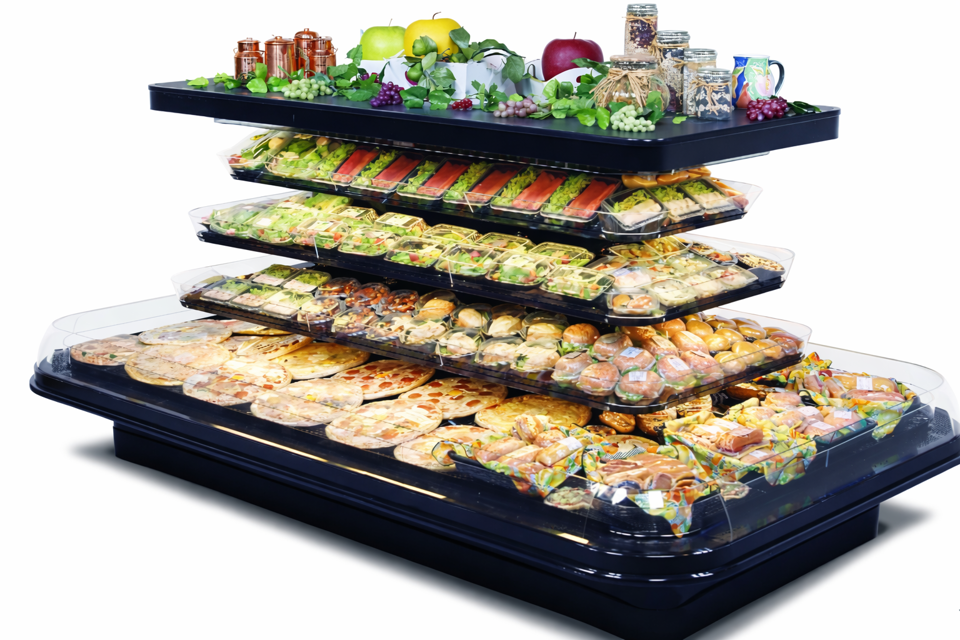

Hussmann Island and Multi-deck Island RI3

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Drill with a 17/8-in. (48 mm) hole saw to drill out the bottom of the drain fitting. Did you drill completely through fitting and bottom liner?

Apply teflon tape to threaded end of adapter and screw into threaded end of tee. Was this done correctly?

Apply an ABS and PVC compatible primer and sealer to adapter and inside of drain. Insert adapter into drain fitting. Was this done correctly?

Sign off on the drain fitting replacement

WARNING: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Fluorescent lamps have a shatterproof protective coating?

Upload a photo of the replaced lamp

Sign off on the lamp replacement

WARNING: ALWAYS SHUT POWER OFF DURING CLEANING PROCESS.

All deck pans and air grilles removed

CAUTION: Coil fins are sharp and pose risk of bodily injury - use extreme care when cleaning around them.

Exterior surfaces cleaned with a mild detergent and warm water

Interior surfaces cleaned with domestic detergents and sanitizing solutions

WARNING: Do NOT allow product to sit in a non-refrigerated area.

Product and all loose debris removed

CLEANING CENTER AIR DISCHARGE (CAD) TOWER

The interior of the CAD tower must be cleaned at least monthly. Frequency is dependent on the ambient conditions of the store.

DISCONNECT THE ELECTRICAL POWER TO THE MERCHANDISER

Apply compressed air to the moiré (pattern of slots) of the CAD to blow accumulated dust off the internal baffles

Use a soft cloth to wipe down the interior. A mild detergent and sanitizing solution may be used. Do not introduce excess water

Once operating temperature is reached, return product from cooler

If air cleaning is not done at least monthly, Hussmann recommends washing by a technician at least every 4 months

DO NOT USE AMMONIA-BASED PRODUCTS TO CLEAN ACRYLIC PARTS. NEVER USE ABRASIVE CLEANSERS OR SCOURING PADS.

Clean with nonabrasive detergent and lukewarm water, using the bare hand to feel and dislodge any caked-on dirt. A soft, grit-free cloth, sponge or chamois may be used, but only as a means of carrying the water to the plastic.

Dry with a clean damp chamois or clean soft cloth such as cotton flannel. Do not use hard, rough cloth or paper towels as they will scratch the acrylic.

Wax should be applied in a thin even coat, and brought to a high polish by rubbing lightly with a clean, dry soft cloth, such as a cotton flannel.

Excessive rubbing may cause scratching and/or build up an electrostatic charge which attracts contaminants. Remove an electrostatic charge by blotting with a clean damp cloth.
