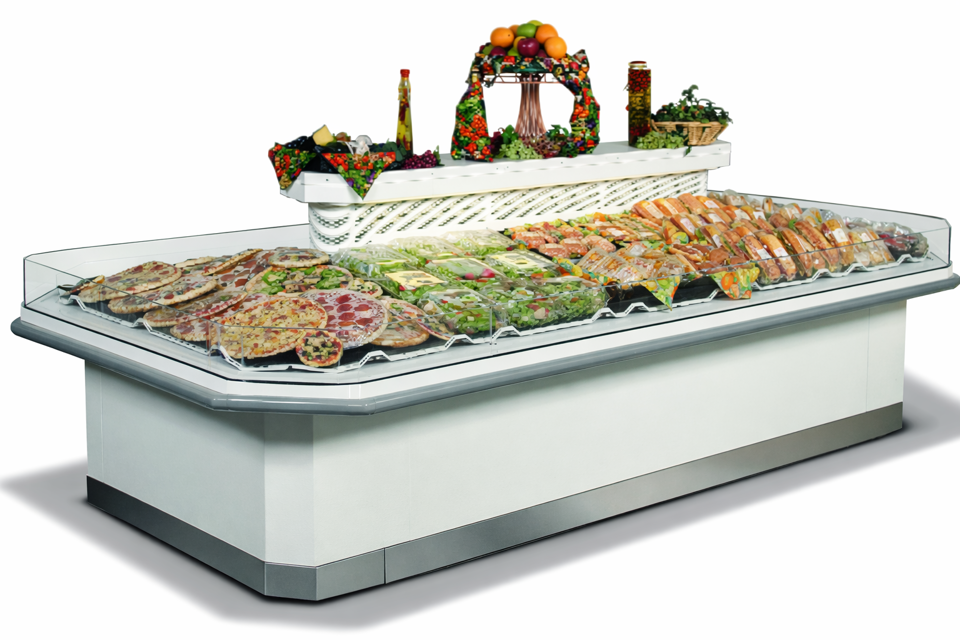

Hussmann Island and Multi-deck Island RI1N

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights.

Drill with a 17/8-in. (48 mm) hole saw to drill out the bottom of the drain fitting. Did you drill completely through fitting and bottom liner?

Apply teflon tape to threaded end of adapter and screw into threaded end of tee. Was this done correctly?

Apply an ABS and PVC compatible primer and sealer to adapter and inside of drain. Insert adapter into drain fitting. Was this done correctly?

Sign off on the drain fitting replacement

Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, these merchandisers should be thoroughly cleaned, all debris removed and the interiors washed down, weekly.

Allow the case to cool for at least 45 minutes before cleaning.

ALWAYS SHUT POWER OFF DURING CLEANING PROCESS.

Fans should be shut off at the source. All deck pans and air grilles are removable.

Coil fins are sharp and pose risk of bodily injury - use extreme care when cleaning around them.

WARNING: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Fluorescent lamps have shatterproof protective coating?

Is the switch in the canopy operating both the canopy and the shelf lamps?

Is the rail lamp switch located on the rail?

Sign off on the lamp replacement

Warning: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Remove bottom display racks and deck pans.

Disconnect fan from wiring harness.

Lift fan plenum and remove screws holding bottom of motor to fan basket.

Reconnect fan to wiring harness.

DO NOT USE AMMONIA-BASED PRODUCTS TO CLEAN ACRYLIC PARTS. NEVER USE ABRASIVE CLEANSERS OR SCOURING PADS.

Clean with nonabrasive detergent and lukewarm water, using the bare hand to feel and dislodge any caked-on dirt. A soft, grit-free cloth, sponge or chamois may be used, but only as a means of carrying the water to the plastic.

Dry with a clean damp chamois or clean soft cloth such as cotton flannel. Do not use hard, rough cloth or paper towels as they will scratch the acrylic.

Wax should be applied in a thin even coat, and brought to a high polish by rubbing lightly with a clean, dry soft cloth, such as a cotton flannel.

Excessive rubbing may cause scratching and/or build up an electrostatic charge which attracts contaminants. Remove an electrostatic charge by blotting with a clean damp cloth.
