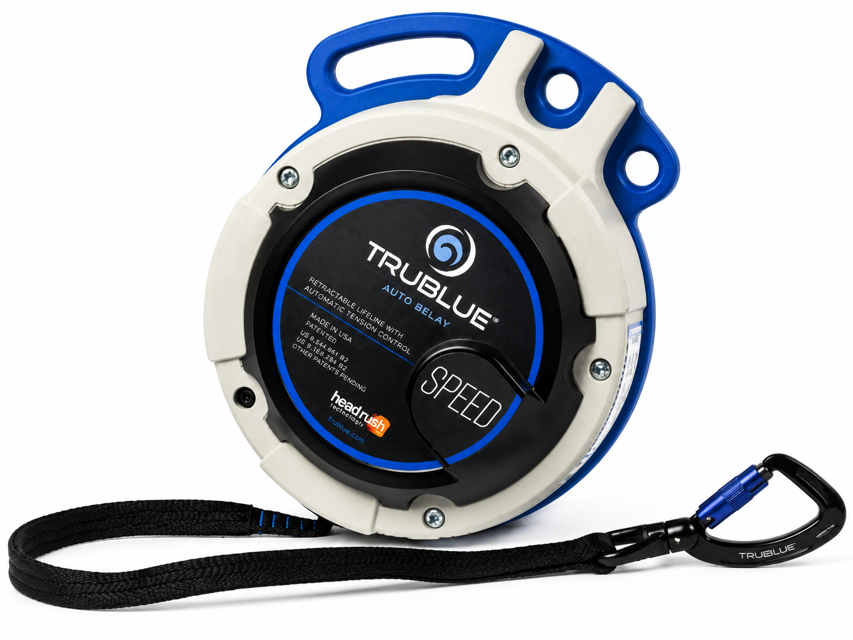

Head Rush Technologies Auto Belay Device TBXL150-20A

Is the Certification Label visible?

Is the Certification Label expiration date valid?

Dismount the Auto Belay device.

Enter the address of the Manufacturer or Authorized Service Center for return.

Prepare the device for shipping to the Manufacturer or Authorized Service Center.

Warning: NO UNAUTHORIZED SERVICING

Ensure unit is securely placed on a sturdy work table and that side covers are not subject to damage.

Ensure adequate lighting and unrestricted access is available to permit a thorough inspection of all areas of the Auto Belay.

Clean any dust, dirt or contamination off the casing and fittings with a clean cloth.

Visually inspect the casing, mounting holes and plastic covers for wear, impact damage, cracking, deformation and corrosion.

Check all safety labels are in place and in good condition.

Is the date on Certification Label current?

Warning: NO UNAUTHORIZED SERVICING

Ensure no unauthorized maintenance, repair, or modifications are performed.

Ensure service area is clean and free from contaminants.

Ensure unit is securely placed on a sturdy work table.

Is the Auto Belay device secured to prevent accidental damage or injury?

Ensure webbing assembly is handled carefully to prevent rapid retraction.

Warning: NO UNAUTHORIZED SERVICING

NOTE: Service in a clean environment

Ensure the Auto Belay device is securely placed on a sturdy work table.

Check that side covers are not subject to damage.

Ensure the working environment is free of loose ferrous materials.

Is the webbing wear at or beyond the designated stage of wear?

Warning: NO UNAUTHORIZED SERVICING

Ensure no unauthorized maintenance, repair, or modifications are attempted.

Ensure service area is clean and free from contaminants.

Ensure unit is securely placed on a sturdy work table.

Ensure side covers are not subject to damage.

Caution: HEAVY OBJECT – 20 KG (44.1 LBS)

Ensure the Auto Belay device is secured during service to prevent accidental damage or injury from dropping.
