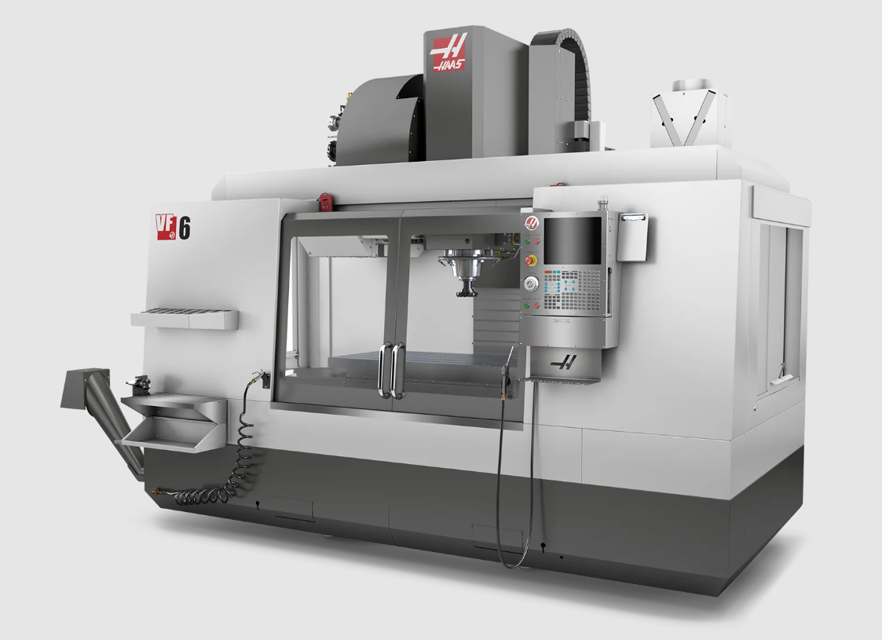

Haas Automation CNC Vertical Machining Center VF-6/40

Create an account to install this asset package.

Maintenance Plans for Haas Automation CNC Vertical Machining Center Model VF-6/40

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly CNC Vertical Machining Center Maintenance

Gearbox Oil Replacement

Gearbox Oil Replacement Steps

Was the gearbox oil replaced successfully?

Oil Filter Check

Was the oil filter checked and cleaned out residue at bottom of filter?

Air Filter Replacement

Was the air filter on control box replaced?

TSC Maintenance

Was the SMTC oil level checked in sight glass?

Run this procedure

1 Daily CNC Vertical Machining Center Maintenance

Check coolant level

Check way lube lubrication tank level

Clean chips from way covers and bottom pan

Clean chips from tool changer

Wipe spindle taper with a clean cloth rag and apply light oil

Sign off on the daily CNC vertical machining center maintenance

Run this procedure

Bulb Replacement

Power to the machine turned off at the main breaker?

Retainer and light lens removed?

Light bulb replaced?

Light lens and retainer replaced?

Power to the machine restored?

Run this procedure

1 Monthly CNC Vertical Machining Center Maintenance

Check oil level in gear box. For 40 taper spindles: Remove inspection cover beneath spindle head. Add oil slowly from top until oil begins dripping from overflow tube at bottom of sump tank. See section 1.4. For 50 taper spindles: Check oil level in sightglass. Add from side of gearbox if necessary. See section 1.5.

Inspect way covers for proper operation and lubricate with light oil, if necessary.

Place a dab of grease on the outside edge of the guide rails of the tool changer and run through all tools.

Replace coolant and thoroughly clean the coolant tank. (6 Monthly CNC Vertical Machining Center Maintenance)

Check all hoses and lubrication lines for cracking. (6 Monthly CNC Vertical Machining Center Maintenance);

Run this procedure

1 Weekly CNC Vertical Machining Center Maintenance

Check Through the Spindle Coolant (TSC) filters. Clean or replace element if needed.

Check for proper operation of auto drain on filter regulator.

On machines with the TSC option, clean the chip basket on the coolant tank. Remove the tank cover and remove any sediment inside the tank. Be careful to disconnect the coolant pump from the controller and POWER OFF the control before working on the coolant tank. Do this MONTHLY for machines without the TSC option.

Check air gauge/regulator for 85 psi. For 15K-spindle machines, check spindle air pressure regulator for 20 psi.

For machines with the TSC option, place a dab of grease on the V-flange of tools. Do this MONTHLY for machines without the TSC option.

Clean exterior surfaces with mild cleaner. DO NOT use solvents.

Check the hydraulic counterbalance pressure according to the machines specifications.;

Run this procedure
