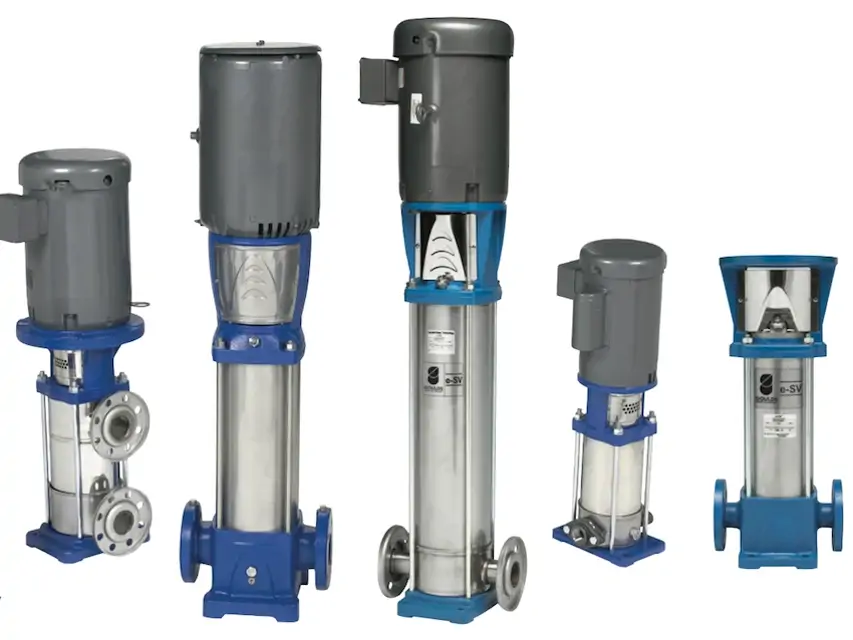

Goulds Pumps Vertical Multistage Pump 1SV7PH40A

Remove the motor following steps 1 through 4 in the 'MECHANICAL SEAL REPLACEMENT' section

For motor frames 213TC and larger, remove the 4 motor hex cap screws and the motor adapter

Install the motor adapter flange onto the new motor

Torque the 4 hex cap screws to the values provided in the 'ENGINEERING DATA' section

Complete the reassembly following steps 17 through 22 in the 'MECHANICAL SEAL REPLACEMENT' section

Disconnect and lockout electrical power before attempting any maintenance

Recommended Motor Bearing Lubrication Intervals

Select the service environment interval

Are lubricants operated at elevated temperatures?

Increase lubrication frequency if lubricants are operated at elevated temperatures

Ensure not to intermix grease bases (lithium, sodium, etc.)

Completely purge old grease if changing grease base

Disconnect and lockout electrical power before attempting any maintenance.

Close all necessary suction and discharge valves to isolate the pump from the system.

Drain the liquid from the pump by removing the drain plug and opening the needle valve on the vent plug.

Remove the coupling guards, the 4 coupling hex cap screws, the coupling and coupling drive pin.

Remove the 4 motor hex cap screws (inner screws) on the seal housing.

Remove the seal housing plate on 33-125SV models using the two tapped holes provided.
