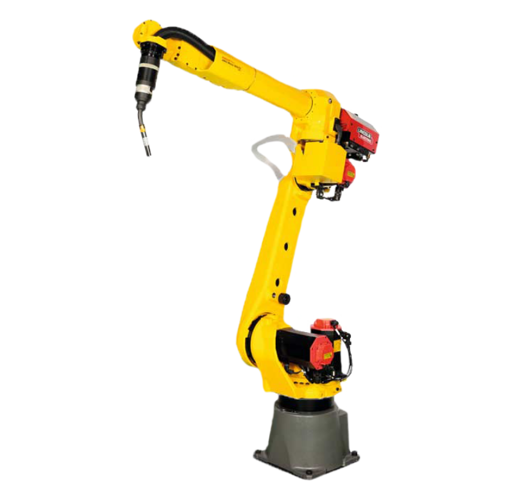

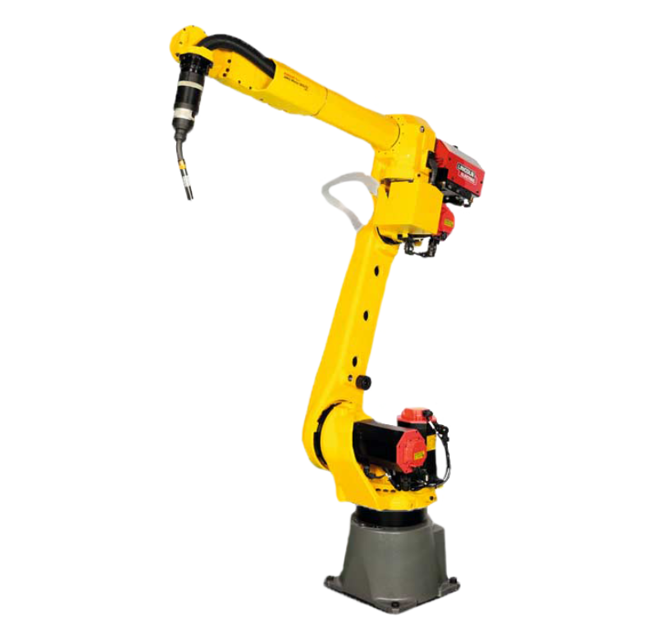

Fanuc Robot ARC Mate 120iC
Create an account to install this asset package.
Maintenance Plans for Fanuc Robot Model ARC Mate 120iC
Integrate maintenance plans directly into your work orders in MaintainX.
17280 Hourly Maintenance
Check the oil sight glass of J4 to J6 axis
Fluoric resin ring
Cleaning the ventilator
5760 Hourly Maintenance
Check the oil sight glass of J4 to J6 axis
Fluoric resin ring
Cleaning the ventilator
Oil Replacement Procedure For J4-Axis Gearbox
Move the robot to the greasing posture described in Table 7.2.3.2 (b)
Turn off the controller power
Remove any peripheral equipment, if it was mounted at the ventilator hole
Put the oil pan under the oil outlet
Block the gap using tape etc. to prevent oil from oil outlet intruding into the J4 connector panel
Remove taper plug or seal bolt or oil outlet and ventilator hole and exhaust oil
When all oil is discharged, attach the taper plug. Replace the taper plug by new one. When reusing it, wind it with a seal tape
Install the oil injection nipple with valve (A05B-1221-K006) to the oil inlet
Confirm the valve is open, Perform oiling using the oil gun (A05B-1221-K005). If the oil sight glass is filled with oil, push the oil gun about 4cm (about 80ml)
15360 Hourly / 4 Yearly Maintenance
Replace the mechanical unit cable
Check the mechanical cable. (Damaged or twisted)
Check the motor connector. (Loosening)
Tighten the end effector bolt.
Retightening extemal main bolts
Check the mechanical stopper and adjustable mechanical stopper.
Remove spatter and dust etc.
Check the application cable
Check the oil sight glass of J4 to J6 axis
10560 Hourly Maintenance
Check the oil sight glass of J4 to J6 axis
Fluoric resin ring
Cleaning the ventilator
Parts for Fanuc Robot ARC Mate 120iC
Access the parts list for your equipment in MaintainX.
Seal Bolt
A97L-0218-0417#060808
Seal Bolt
A97L-0218-0417#081010
Taper Plug
A97L-0001-0436#1-1D
Seal Washer
A30L-0001-0048#5M
Seal Washer
A30L-0001-0048#6M
Seal Bolt
A97L-0218-0417#060808
Seal Bolt
A97L-0218-0417#081010
Taper Plug
A97L-0001-0436#1-1D
Seal Washer
A30L-0001-0048#5M
Seal Washer
A30L-0001-0048#6M
Seal Bolt
A97L-0218-0417#060808
Seal Bolt
A97L-0218-0417#081010
Taper Plug
A97L-0001-0436#1-1D
Seal Washer
A30L-0001-0048#5M
Seal Washer
A30L-0001-0048#6M
