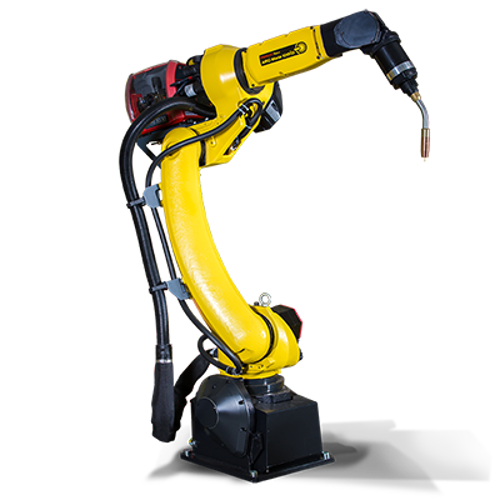

Fanuc Robot 100id 7L
Need answers fast?
Explore the manual using AI.
The Fanuc Robot 100id 7L is a high-performance industrial robot designed for precision automation tasks. Known for its reliability and versatility, this model excels in various applications, ensuring optimal productivity and efficiency in manufacturing environments.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Fanuc Robot 100id 7L
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more

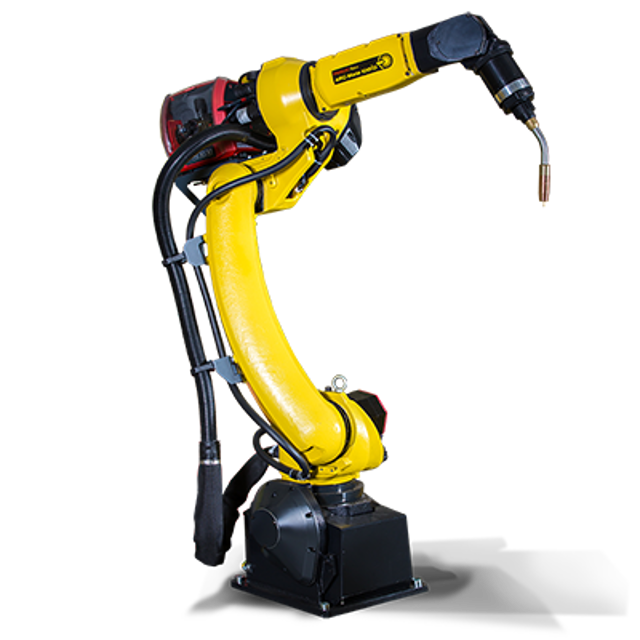

Fanuc Robot 100id 7L
Create an account to install this asset package.
Maintenance Plans for Fanuc Robot Model 100id 7L
Integrate maintenance plans directly into your work orders in MaintainX.
13440 Hourly Maintenance
Check for external damage or peeling paint
Check for water
Cleaning the controller ventilation system
20160 Hourly Maintenance
Check for external damage or peeling paint
Check for water
Cleaning the controller ventilation system
Sign off on the maintenance check
15360 Hourly / 4 Yearly Maintenance
Check for external damage or peeling paint
Check for water
Check the mechanical cable and welding power cable (Damaged or twisted)
Check the end effector (hand) cable
Check the motor connector. (Loosening)
Tighten the end effector bolt
Tighten the cover and main bolt
Check the fixed mechanical stopper and adjustable mechanical stopper
Remove spatter and dust etc.
11520 Hourly / 3 Yearly Maintenance
Grease replacement procedure for the reducer (J2/J3-axis)
Move the robot to the greasing Posture described in Table.7.3.2.1 (b)
Turn off controller power
Remove the bolt and the seal washer from grease outlet
Remove the bolt and the seal washer from grease inlet and attach grease nipple
Keep greasing until the new grease pushes out the old grease and comes out from each grease outlet
Release remaining pressure using the procedure given in Subsection 7.3.2.2
Exhausting oil method
Turn off controller power
4800 Hourly Maintenance
Check for external damage or peeling paint
Check for water
Cleaning the controller ventilation system
Sign off on the 4800 Hourly Maintenance
Parts for Fanuc Robot 100id 7L
Access the parts list for your equipment in MaintainX.
Power Cable
A05B-2450-J364
Taper Plug
A97L-0001-0436#1-1D
Seal Washer
A30L-0001-0048#6M
Brake Release Unit
A05B-2450-J350
Brake Release Unit
A05B-2450-J351
Power Cable
A05B-2450-J364
Taper Plug
A97L-0001-0436#1-1D
Seal Washer
A30L-0001-0048#6M
Brake Release Unit
A05B-2450-J350
Brake Release Unit
A05B-2450-J351
Power Cable
A05B-2450-J364
Taper Plug
A97L-0001-0436#1-1D
Seal Washer
A30L-0001-0048#6M
Brake Release Unit
A05B-2450-J350
Brake Release Unit
A05B-2450-J351
