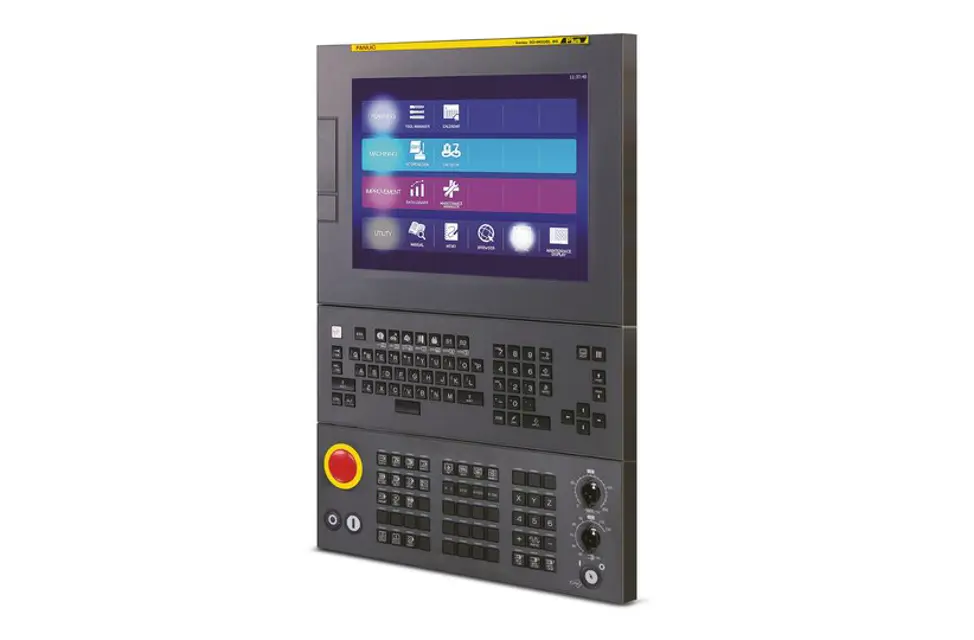

Fanuc Robot 31i Model B5
Fanuc Robot 31i Model B5

The Fanuc Robot 31i Model B5 is a highly versatile industrial robot designed for precision automation tasks. Known for its reliability and efficiency, this model excels in various applications, making it an essential asset for modern manufacturing environments. Optimize your operations with this advanced robotic solution from Fanuc.

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Fanuc Robot 31i Model B5

Fanuc Robot 31i Model B5

Create an account to install this asset package.

Maintenance Plans for Fanuc Robot Model 31i Model B5

Integrate maintenance plans directly into your work orders in MaintainX.

Stand-Alone Type Control Unit Replacement

Check mark

Remove each cable from the control unit

Check mark

Remove the fan unit

Check mark

Hold handles A and B

Check mark

Pull out the printed circuit board while pushing down the hook of handle A and pushing up the hook of handle B

Check mark

Move the cards and modules from the detached main board to another (replacing) main board, attach the replacing main board

Check mark

While holding handles A and B, push the main board into the control unit slowly and engage it with the back panel connector. Make sure that the hooks of handles A and B have latched on the case

Check mark

While referencing Subsection 3.11.2, attach the fan unit. Note that, unless the main board is engaged with the back panel securely, the fan unit cannot be mounted

Check mark

Re-attach the cables correctly

Check mark

Sign off on the control unit replacement

Run this procedureArrow right

Lcd-Mounted Type Control Unit Maintenance

Check mark

Remove each cable from the control unit

Check mark

Take out the control unit from the cabinet

Check mark

Detach the two screws in the lower section of the case unit from the main board

Check mark

Pull out the case unit while unlatching the claws from the metal bases on both sides in the upper section of the case unit

Check mark

Remove the cable from each connector on the main board

Check mark

Also remove the screws fastening the main board

Check mark

Detach the main board by pulling it down

Check mark

Move the cards and modules from the detached main board to another (replacing) main board

Check mark

Attach the replacing main board

Run this procedureArrow right

From/Sram Module Maintenance

Check mark

Demounting an FROM/SRAM module

Check mark

Open the claw of the socket outward. (Fig. a)

Check mark

Extract the module slantly upward. (Fig. b)

Check mark

Mounting an FROM/SRAM module

Check mark

Insert the module slantly into the module socket, with side B facing upward. (Fig. b)

Check mark

Push the module downward until it is locked. (Fig. c) At this time, push it down with pushing two points of (*) in the figure.

Check mark

Sign off on the module maintenance

Run this procedureArrow right

Replacement Of A Fan Motor

Check mark

How to Detach Fan Units from 60 and 90 mm Width Units

Check mark

Holding the two lugs on the fan unit, lift the internal cooling fan unit upward

Check mark

Check if the lock of DC link terminal cover is released and opened

Check mark

Check if the discharge of DC link (LED has gone out) is checked, and DC link short bar is removed

Check mark

Loosen the lower screw (one place) of the radiator cooling fan unit

Check mark

Loosen the upper screw (60mm wide is one place and 90mm wide is two places) of the radiator cooling fan unit

Check mark

Pull out the radiator cooling fan unit to the front

Check mark

How to Detach Fan Units from 150 and 300 mm Width Units

Check mark

Holding the two lugs on the fan unit, lift the internal cooling fan unit upward

Run this procedureArrow right

The Display Control Board For The Display Unit Replacement

Check mark

Detach each cable from the display unit

Check mark

Remove the screws from the cover and detach the cover

Check mark

Remove the two screws from the lower section of the case unit

Check mark

Remove the cable from each connector on the display control board

Check mark

Detach the display control board by pulling it down

Check mark

Move cards and modules from the detached display control board to another

Check mark

Connect the display control board to the inverter board and fasten it with screws

Check mark

Re-attach each cable to the display control board

Check mark

Mount the cover using screws

Run this procedureArrow right

Parts for Fanuc Robot 31i Model B5

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Fuse

A03B-0815-K001

2-Slot Rack Fan Unit

A02B-0303-C103

4-Slot Rack Fan Unit

A02B-0303-C102

Terminal Conversion Adapter Ta1

A03B-0824-K151

I/O Module

A03B-0824-C003

Fuse

A03B-0815-K001

2-Slot Rack Fan Unit

A02B-0303-C103

4-Slot Rack Fan Unit

A02B-0303-C102

Terminal Conversion Adapter Ta1

A03B-0824-K151

I/O Module

A03B-0824-C003

Fuse

A03B-0815-K001

2-Slot Rack Fan Unit

A02B-0303-C103

4-Slot Rack Fan Unit

A02B-0303-C102

Terminal Conversion Adapter Ta1

A03B-0824-K151

I/O Module

A03B-0824-C003
