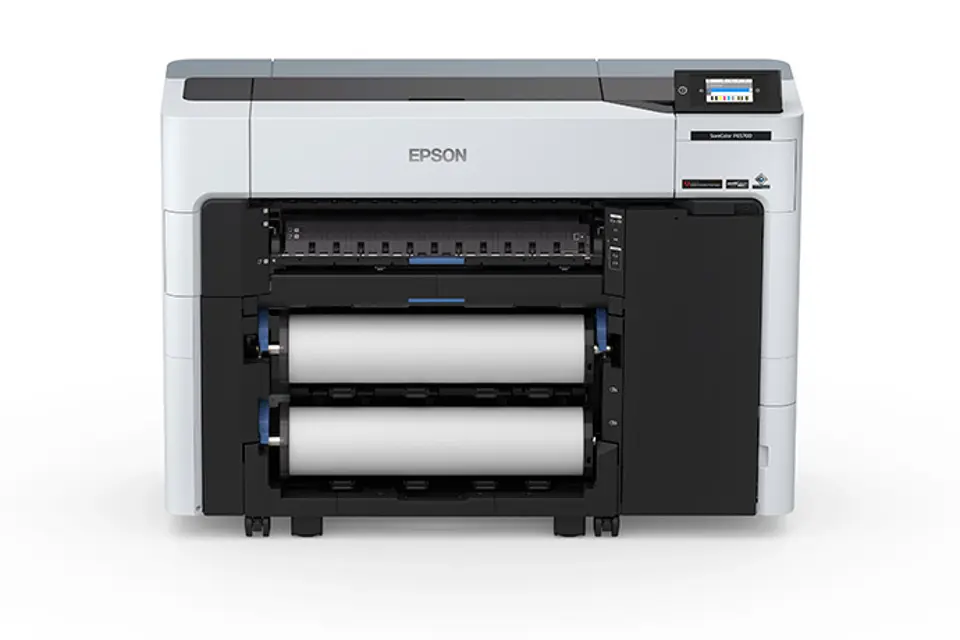

Epson Inkjet Printer SureColor P6570DE

Create an account to install this asset package.

Maintenance Plans for Epson Inkjet Printer Model SureColor P6570DE

Integrate maintenance plans directly into your work orders in MaintainX.

Print Head Wiping

Caution: Do not touch any circuit boards or any parts inside the printer besides those which need to be cleaned.

Always use new cleaning sticks, or dirt may be transferred into the printer.

Do not touch the tips of the cleaning sticks. This may reduce the cleaning effect.

Touch a metal object before cleaning to discharge any static electricity.

Do not use an organic solvent such as alcohol to wipe the caps, as it may damage the print head.

Do not move the print head by hand. Doing so could damage the printer.

If paper is loaded in the printer, remove it.

On the LCD screen, select Maintenance > Cleaning the Maintenance Parts > Wiping the Print Head > Start.

The print head moves to the cleaning position.

Run this procedure

Maintenance Box Replacement

Warning: Do not replace the maintenance box while printing, otherwise ink may leak.

Check the LCD screen to determine which maintenance box needs to be replaced.

Caution: Do not touch the chip on the side of the maintenance box or you may prevent normal operation and printing.

Note: Do not reuse a maintenance box you have removed from the printer and exposed to air for a long period of time. The box will not absorb any more ink.

Open the maintenance box cover.

Use the handle on the maintenance box to carefully pull it out of the product without tilting the box.

Warning: If ink gets on your skin, wash it thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water. If ink gets into your mouth, spit it out and see a doctor right away.

Place the used maintenance box in the bag supplied with the new box and seal the bag.

Note: Do not tilt the maintenance box until the bag is firmly sealed, otherwise ink may leak.

Run this procedure

Ink and Maintenance Box Status Check

Checking Ink and Maintenance Box Status on the LCD Screen

Press the home button

Check the ink color icons at the bottom of the home screen

Checking Ink and Maintenance Box Status with Windows

Access the Windows Desktop and click the printer icon for your product in the rightside of the Windows taskbar

Click the up arrow and click printer icon. Then click your product name

Replace or reinstall the ink color or maintenance box as indicated on the screen

Checking Ink and Maintenance Box Status - Mac

In the Apple menu or the Dock, select System Preferences or System Settings

Run this procedure

Paper Feed Adjustment

Paper Feed Adjust: Adjust the paper feed if you are unable to resolve banding issues even after cleaning and aligning the print head.

Adjusting the Paper Feed Using the Product Control Panel

If your printouts are grainy or blurry, or you still see dark or light horizontal bands, you may need to adjust the paper feed using the product control panel.

1. Load roll paper or cut sheet paper in the printer.

Note: Load paper that is at least 13.3 inches wide by 21.9 inches long (338 mm × 558 mm).

2. Make sure the correct paper type is selected.

Note: If you are using commercially available paper, make sure you create the custom paper settings in advance.

3. Select Paper Setting > paper source > Print Adjustments > Paper Feed Adjust.

4. Select one of the following:

Run this procedure

Print Head Alignment

Ruled Line Alignment: Adjust the position of the print head if your printouts are grainy or out of focus.

Ruled Line Alignment

If your printouts become grainy or blurry, you notice misalignment of vertical lines, or you see dark or light horizontal bands, you may need to align the print head.

Before you align the print head, note the following:

• Alignment varies depending on the loaded media. Align the print head using the media on which you want to print and select the paper type that matches the paper in the printer. When adjusting using non-Epson paper, make sure you register the custom paper in advance.

• Run a nozzle check before you align the print head. If there are any gaps in the nozzle check pattern, clean the print head.

• Manually align the print head on any transparent or colored paper or on these paper types: Plain paper, Epson Enhanced Matte Poster Board.

• Make sure no direct sunlight enters the printer, or the alignment pattern may not be read correctly.

Aligning the Print Head Automatically Using the Product Control Panel

Run this procedure
