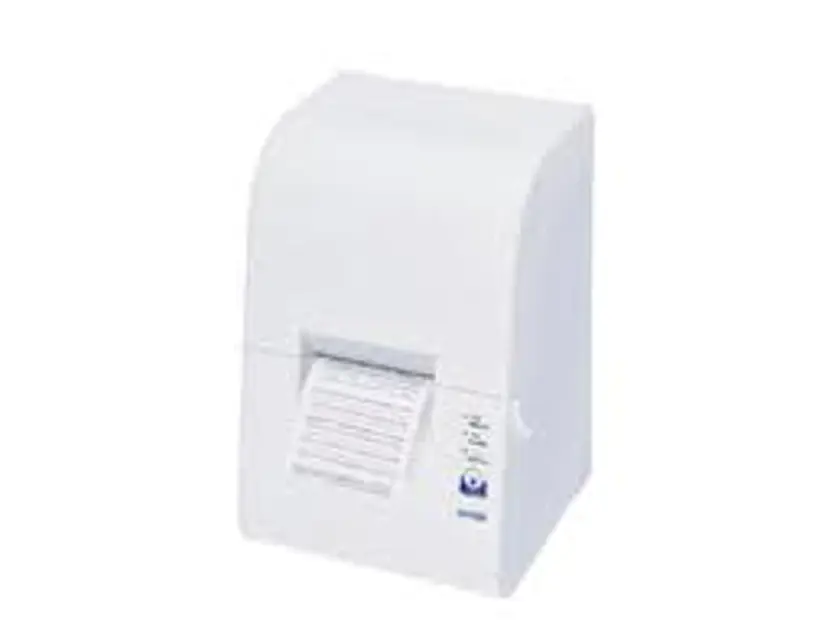

Epson Printer M166A

CAUTION: Be sure not to touch the manual cutter. Otherwise your fingers might be injured. Use the EPSON ERC-38. The use of any ribbon cassettes other than those approved by EPSON may damage the printer and will void the warranty.

Turn on the printer. Turn the knob on the ribbon cassette.

Open the paper roll cover and cutter cover.

Lift the autocutter, using the tab; then insert the new ribbon.

Turn the knob 2 or 3 times again and check if the ribbon cassette is in the right position.

Sign off on the ribbon installation

CAUTION: Be sure not to touch the manual cutter. Otherwise your fingers might be injured.

Note: Be sure to use roll paper that meets the specifications.

Using scissors, cut the leading edge of the roll paper.

Open the paper roll cover; then turn on the printer.

Insert a paper roll; then hold both edges of the paper and insert it straight into the paper insert slot until the paper is fed automatically.

Note the direction the paper comes off the roll.

When the paper feeding is finished, tear off the fed paper with the manual cutter.

When the PAPER OUT light blinks, press the FEED button to set the printer online.
