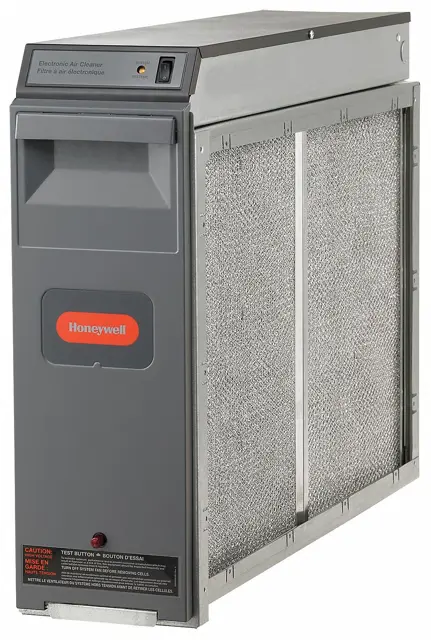

Honeywell Electronic Air Cleaner F300E 16x25

Broken or bent ionizer wires can cause an electrical short to ground, often resulting in visible arcing or sparking.

Do not use cells until broken wires are removed.

Cells can be used temporarily with one wire missing, but replace the wire as soon as possible.

Replacement wires are supplied cut to length with eyelets on both ends for easy installation.; To install:

1. Hook the eyelet on one end of the wire over the spring connector on one end of the cell.

Be careful to avoid damaging spring connectors or other parts of the cells.

2. Hold the opposite eyelet with a needle nose pliers and stretch the wire the length of the cell.

Depress the opposite spring connector and hook the eyelet over it.

Always disconnect power and open access door before opening power supply cover.

The electronic air cleaner generates a small amount of ozone in normal operation.

During the first week or two of operation, the amount may be higher because of sharp edges on some of the new high voltage metal parts.

Normal use quickly dulls these edges.

If desired, the ozone generated by the air cleaner can be reduced in one of two ways:

1. Install an activated carbon filter downstream from the air cleaner. Make sure particles from the air filter cannot fall into the air cleaner.

Warning: Ensure the equipment is turned off before starting the replacement process

Old filter removed successfully?

Upload a photo of the removed filter

New filter installed successfully?

Upload a photo of the installed filter

Sign off on the filter replacement

Warning: This cleaning procedure requires trained personnel with PPE!

Pressure drop across the air cleaner

Pressure drop is less than or equal to 0.5 in. w.c. (0.1 kPa)?

If pressure drop is more than 0.5 in. w.c. (0.1 kPa), clean the air cleaner immediately.

Is the air cleaner installed downstream from an atomizing humidifier or does the installation include both heating and cooling?

If yes, more frequent replacement may be necessary.

If prefilters are clogged, clean them promptly to avoid restricting airflow and reducing efficiency of the heating-cooling system.

Air cleaner switch and system blower turned on

Neon light next to the On-Off switch is on

Neon light goes off after system blower is turned off

Snapping sound present when test button is pushed with air cleaner energized

Steps 1 through 3 repeated for each fan speed

Sign off on the air cleaner operation check
