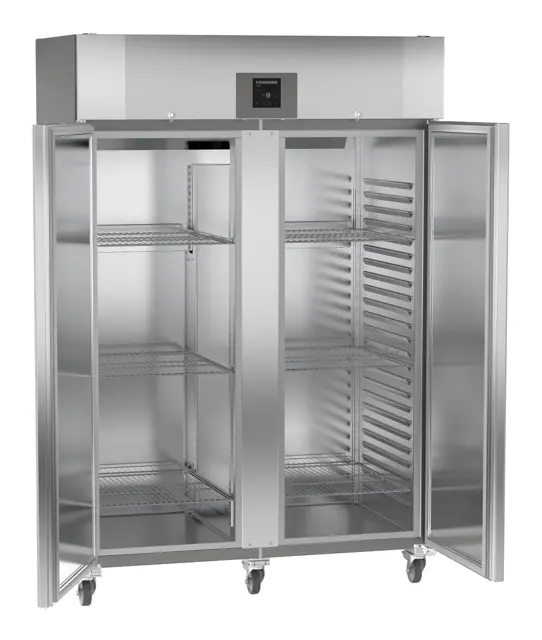

Liebherr Commercial Freezer GGPv 1440

Warning: Ensure the freezer is unplugged before starting the procedure

Is the drain hose with an R 3/4 connection fitted to the underside of the appliance?

Is the water collected in the interior during cleaning being drained off?

Upload a photo of the fitted drain hose

Sign off on the freezer water drain cleaning

Warning: Ensure the dust collector is unplugged before starting the cleaning process

Dust filter cleaned with water and detergent

Sign off on the dust collector cleaning

This test checks the function of the internal and any external connected alarm device. The appliance does not stop its refrigerating function during this test.

Press bell + arrow down for 5 seconds.

The display changed to a temperature value of 0.2°C below the set upper alarm limit.

The temperature value rose by 0.1°C every 2 seconds.

When the upper alarm limit was reached, symbol appeared in the display. An external alarm unit connected to the floating alarm output was activated.

The temperature value continued to rise up to 0.2°C above the upper alarm limit.

The same process took place automatically for the lower alarm limit. Symbol appeared in the display.

The LED symbol was lit during the test.

The electronic control system automatically switched back to normal operating mode.

WARNING: Before cleaning, always disconnect the appliance from the mains. Pull out the plug or switch off the fuse.

CAUTION: Risk of damage to the appliance components and risk of injury due to hot steam. Do not use steam cleaning equipment to clean the appliance.

Appliance disconnected from the mains?

Steam cleaning equipment not used?

No cleaning water penetrated into the electrical components?

All parts dried well with a cloth?

Used commercially available stainless-steel cleaning agent for stainless-steel appliances?

Type plate on the inside of the appliance not damaged or removed?
