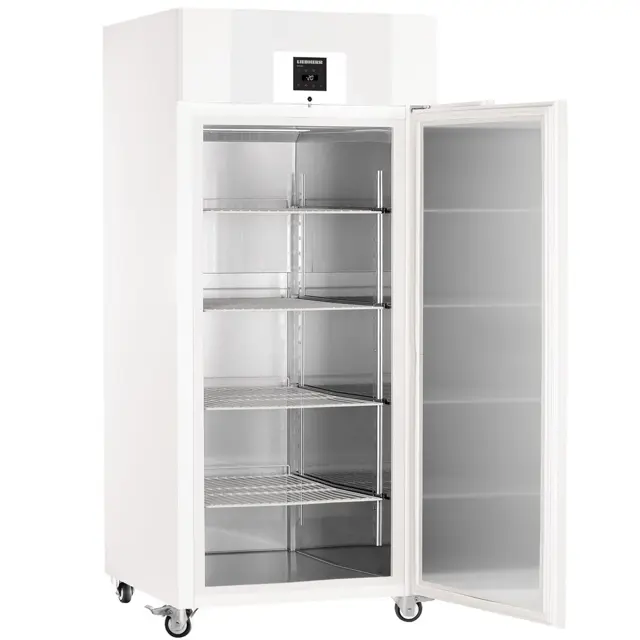

Liebherr Commercial Freezer BGPv 8420

Create an account to install this asset package.

Maintenance Plans for Liebherr Commercial Freezer Model BGPv 8420

Integrate maintenance plans directly into your work orders in MaintainX.

Freezer Cleaning

WARNING: Before cleaning, always disconnect the appliance from the mains. Pull out the plug or switch off the fuse.

CAUTION: Risk of damage to the appliance components and risk of injury due to hot steam. Do not use steam cleaning equipment to clean the appliance.

Appliance disconnected from the mains?

Steam cleaning equipment not used?

Cleaning agent used

No cleaning water penetrated into the electrical components?

All parts dried well with a cloth?

Used commercially available stainless-steel cleaning agent for stainless-steel appliances?

Type plate on the inside of the appliance not damaged or removed?

Run this procedure

Freezer Water Drain

Warning: Ensure the freezer is unplugged before starting the procedure

Is the freezer unplugged?

Locate the drain hose with an R 3/4 connection on the underside of the appliance

Is the drain hose located?

Fit the drain hose to the underside of the appliance

Is the drain hose fitted correctly?

Use the supplied angled connector to drain off the water collected in the interior during cleaning

Is the water drained off successfully?

Sign off on the freezer water drain procedure

Run this procedure

6 Monthly Dust Collector Cleaning

Warning: Ensure the dust collector is unplugged before starting the cleaning process.

Dust filter removed successfully

Upload a photo of the removed dust filter

Dust filter cleaned with water and detergent

Upload a photo of the cleaned dust filter

Dust filter reinstalled successfully

Sign off on the dust collector cleaning

Run this procedure

Alarm Test

This test checks the function of the internal and any external connected alarm device. The appliance does not stop its refrigerating function during this test.

Press bell + arrow down for 5 seconds.

The display changed to a temperature value of 0.2°C below the set upper alarm limit.

The temperature value rose by 0.1°C every 2 seconds.

When the upper alarm limit was reached, symbol appeared in the display. An external alarm unit connected to the floating alarm output was activated.

The temperature value continued to rise up to 0.2°C above the upper alarm limit.

The same process took place automatically for the lower alarm limit. Symbol appeared in the display.

The LED symbol was lit during the test.

The electronic control system automatically switched back to normal operating mode.

Run this procedure
