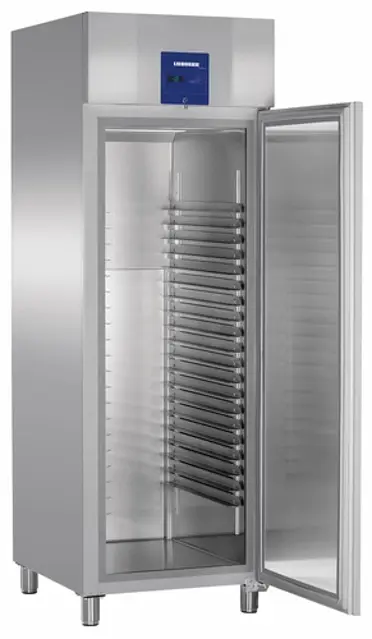

Liebherr Commercial Freezer BGPv 6570

Warning: Ensure the freezer is unplugged before starting the procedure

Is the drain hose with an R 3/4 connection fitted to the underside of the appliance?

Upload a photo of the fitted drain hose

Is the water being drained properly?

Describe any issues encountered during the procedure

Sign off on the freezer water drain procedure

WARNING: Before cleaning, always disconnect the appliance from the mains. Pull out the plug or switch off the fuse.

Surfaces which may come into contact with food and accessible drain systems must be cleaned at regular intervals.

CAUTION: Risk of damage to the appliance components and risk of injury due to hot steam. Do not use steam cleaning equipment to clean the appliance.

Clean the inside, equipment parts and outer walls with lukewarm water and a little detergent. Do not use chemical solvents or any cleaning agents containing sand or acid.

To avoid short-circuits, ensure no cleaning water penetrates into the electrical components when cleaning the appliance.

Dry all parts well with a cloth.

Use a commercially available stainless-steel cleaning agent for stainless-steel appliances.

Do not damage or remove the type plate on the inside of the appliance. It is very important for servicing purposes.

Sign off on the freezer cleaning

This test checks the function of the internal and any external connected alarm device. The appliance does not stop its refrigerating function during this test.

Press bell + arrow down for 5 seconds.

The display changed to a temperature value of 0.2°C below the set upper alarm limit.

The temperature value rose by 0.1°C every 2 seconds.

When the upper alarm limit was reached, symbol appeared in the display. An external alarm unit connected to the floating alarm output was activated.

The temperature value continued to rise up to 0.2°C above the upper alarm limit.

The same process took place automatically for the lower alarm limit. Symbol appeared in the display.

The LED symbol was lit during the test.

The electronic control system automatically switched back to normal operating mode.

Warning: Ensure the dust collector is unplugged before starting the cleaning process

Dust filter cleaned with water and detergent

Sign off on the dust collector cleaning
