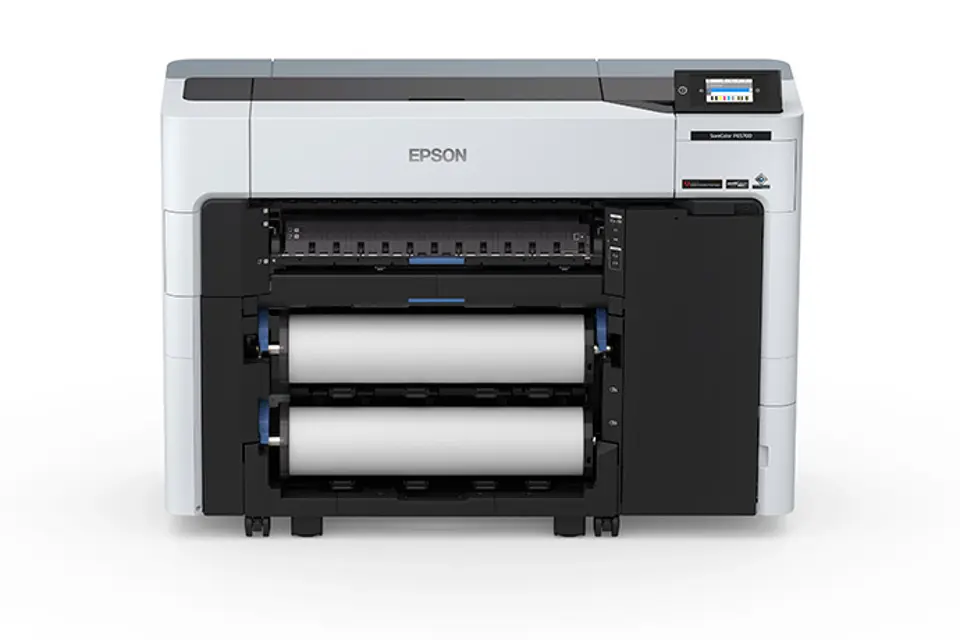

Epson Inkjet Printer SureColor T7770D

Caution: Do not touch any circuit boards or any parts inside the printer besides those which need to be cleaned.

Always use new cleaning sticks, or dirt may be transferred into the printer.

Do not touch the tips of the cleaning sticks. This may reduce the cleaning effect.

Touch a metal object before cleaning to discharge any static electricity.

Do not use an organic solvent such as alcohol to wipe the caps, as it may damage the print head.

Do not move the print head by hand. Doing so could damage the printer.

If paper is loaded in the printer, remove it.

On the LCD screen, select Maintenance > Cleaning the Maintenance Parts > Wiping the Print Head > Start.

The print head moves to the cleaning position.

Caution: If ink remains on these parts, it could transfer to your printouts. Continued use of your product with ink, paper particles, or lint on these surfaces could damage the print heads or clog the nozzles.

Turn off the product, wait for the LCD screen to turn off, and unplug the power cable from the electrical outlet.

Wait for one minute before continuing.

Use a soft, lint-free cloth to thoroughly remove dust and dirt from the platen. Wipe from the top to the bottom of the platen and do not touch the rollers or ink tubes.

Upload a photo of the cleaned area

If any paper particles have accumulated in the holes, use a pointed object such as a toothpick to push the material into the holes.

Use cotton swabs to remove any paper particles or dust around the outer edges of the borderless pads.

Close the front covers, plug in the power cord, and turn the product back on.

Caution: Do not touch any circuit boards or any parts inside the printer besides those which need to be cleaned.

Always use new cleaning sticks, or dirt may be transferred into the printer.

Do not touch the tip of the cleaning stick. This may reduce the cleaning effect.

Touch a metal object before cleaning to discharge any static electricity.

Do not use an organic solvent such as alcohol to wipe the caps, as it may damage the print head.

Do not move the print head by hand. Doing so could damage the printer.

If paper is loaded in the printer, remove it.

On the LCD screen, select Maintenance > Cleaning the Maintenance Parts > Wiping around the Cap.

Warning: This procedure requires careful handling of ink cartridges. Please follow the instructions carefully.

Shake the cartridges before installing them in the printer

Remove and shake the installed cartridges every six months or if the printer has not been used in the last three months

Removing and Installing Ink Cartridges

Place your finger in the groove at the top of the ink cartridge and pull it out

Remove the new cartridge from the package

Gently shake the cartridge for 10 seconds, or about 30 times, in approximately 4 inch (10 cm) horizontal movements

Caution: Store the replacement cutter out of the reach of children. Do not remove the protective material from the new cutter until instructed to do so. Do not drop the cutter or knock it against anything or you may chip the blade.

Remove all paper from the printer.

Select Maintenance > Replace Auto cutter blade > Start.

The cutter moves to the replacement position.

Use a Phillips-head screwdriver to loosen the screw holding the cutter in place and carefully remove the cutter. Place the cutter in a plastic bag and dispose of it properly.

Warning: Keep the cutter out of the reach of children. The blade is sharp and can cause injury.

Install the new cutter in the product with the protective material still attached.
