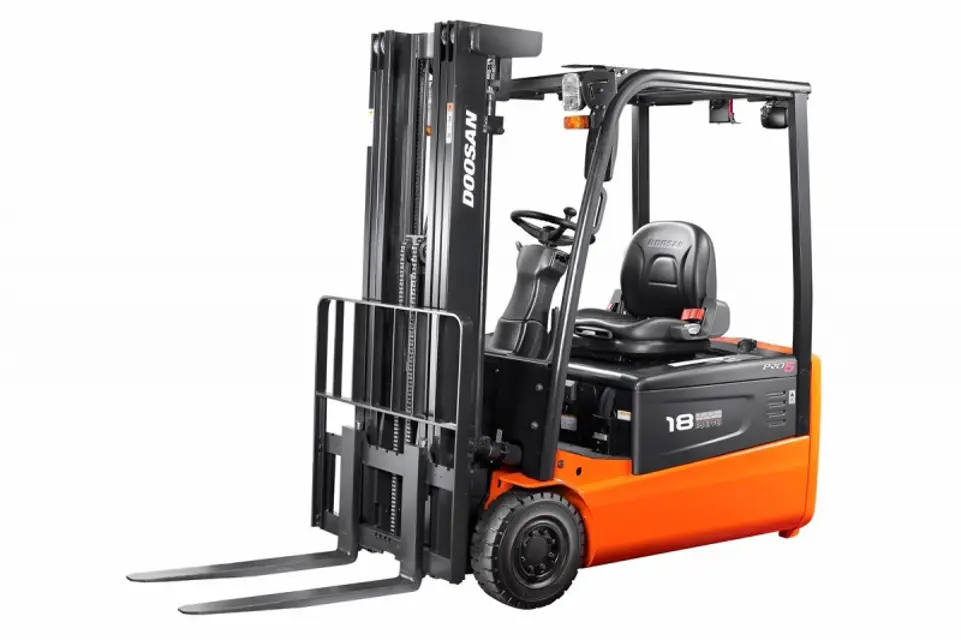

Doosan Lift Truck B18T-5

Mast, Carriage, Lift Chains & Attachments - Inspect

Mast, Carriage, Lift Chains & Attachments - Lubricate

Carriage Roller Extrusion - Adjust

Sign off on the lift truck service

Park the lift truck level, with the parking brake engaged and directional control lever in NEUTRAL

Raise the mast and block in place

Unscrew oil air-breather (Oil filling plug) (1), level checking plug (2), and remove the drain plug (3). Allow the oil to drain

Fill the drive axle housing with oil through air-breather plug hole (1), the accurate amount of oil is defined by the opening of level checking plug (2)

Screw the level checking plug (2) and air-breather in with the seal ring

Raise the mast and remove the blocking

Steer Wheel Bearings - Reassembled

Sign off on the service completion

Hydraulic Return Filter – Change

Loosen the bolts of the hydraulic tank top plate assembly

Remove the return filter from tank top plate assembly

Install the tank top plate assembly and fasten the bolts

Start the engine and operate the hydraulic controls, and the steering system, through a few cycles to fill the lines. Look for oil leaks

Stop the engine and check the oil level. With all cylinders retracted, maintain the oil level to the FULL mark on the dip stick/filter cap assembly

Sign off on the service completion
