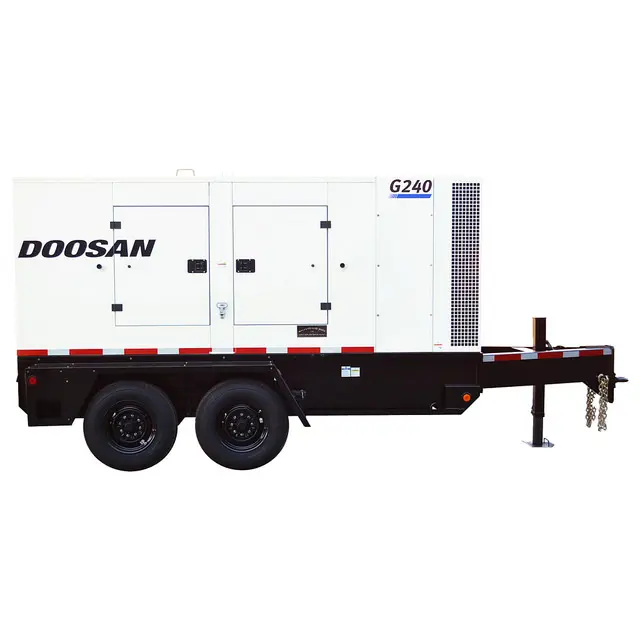

Doosan Generator G240WCU-2C-T3 (D97)

Ensure all electric loads are disconnected, engine is stopped and main breaker is turned on.

Voltage Selector Switch set to 277/480V position and VSS door closed and latched

Voltage POT(P2) on regulator adjusted to full counterclockwise position

Voltage POT on control panel adjusted to full clockwise position

Voltage Output Monitor switch on the control panel set to L1-L2 position

Voltage POT(P2) on the regulator adjusted to read 500V on AC voltmeter

Stability POT(P3) adjusted counter clockwise until the AC volts within ± 1 volt

Servicing or troubleshooting must be carried out strictly in accordance with instructions so as to avoid the risk of accidents and to maintain the machine in its original state.

All such operations performed on the alternator should be undertaken by personnel with training of electrical and mechanical components.

Before any intervention on the machine, ensure that it cannot be started by a manual or automatic system and that you have understood the operating principles of the system.

Enter the current operation hours of the machine

All fixing screws on the machine are still tight

The general state of the machine is satisfactory

The various electrical connections in the installation are in good condition

Sign off on the alternator check

• Weekly check the condition of the tires, and gauge the air pressure. Tires that have cuts or cracks or little tread should be repaired or replaced.

• Every six months or 500 hours, or less if fuel is of poor quality or contaminated, replace the bowl elements(s).

• The engine coolant system is normally filled with a 50/50 mixture of water and ethylene glycol.

• This permanent type anti-freeze contains rust inhibitors and provides protection to -35°F (-37°C). The use of such a mixture is recommended for both summer and winter operation.

• When using water alone, be sure to add a reputable brand of rust inhibitor to prevent internal corrosion.

• It is recommended to test the freezing protection of the coolant every six months or prior to freezing temperatures. Replenish with a fresh mixture every twelve months.

3. Check Control Compartment (Interior).

• Each month it is recommended that the intake hoses from the air cleaner and all flexible hoses used for water and fuel be inspected for the following:

1) All rubber hose joints and the screw type hose clamps must be tight and the hoses showing no signs of wear, abrasion or deterioration.

2) All flexible hoses must be free of wear, deterioration and vibration abrasion. Routing clamps must be secure and properly mounted.

2. Each month, inspect the radiator exterior for obstructions, dirt and debris. If present, blow water or compressed air containing a non-flammable solvent between the fins in a direction opposite the normal air flow. Should the radiator be clogged internally, reverse flushing, using a commercial product and the supplier’s recommended procedure, may correct the problem.

• On Keystart models, each month the diagnostic lamps should be tested. With unit shutdown and emergency stop pushed, turn the Engine Start Switch to “START”, or pull the ESTOP to apply power to the controller. All diagnostic lamps should glow; If not, refer to troubleshooting.

4. Diagnostic Trouble Code (DTC) Display

• On models with Electronic (ECU) engines, each month, the DTC display should be tested. When unit is started, the DTC Display should show dashes (---) or a trouble code if there is a fault condition.
