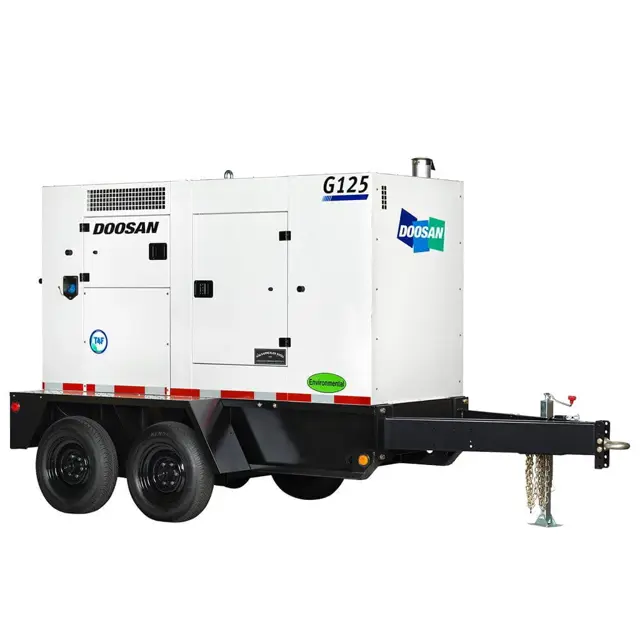

Doosan Generator G125

Proper maintenance of the air cleaner provides maximum protection against airborne dust.

Squeeze the rubber valve (precleaner dirt dump periodically to ensure that it is not clogged).

To service the air cleaners, proceed as follows:

Inspect air cleaner housing for any condition that might cause a leak and correct as necessary.

Wipe inside of air cleaner housing with a clean, damp cloth to remove any dirt accumulation. This will permit better seal for gasket on filter element.

The air cleaner assembly (housing) should be inspected every 3 months or 500 hours for any leakage paths.

Make sure the inlet is free from obstruction.

Servicing or troubleshooting must be carried out strictly in accordance with instructions so as to avoid the risk of accidents and to maintain the machine in its original state.

All such operations performed on the alternator should be undertaken by personnel with training of electrical and mechanical components.

Before any intervention on the machine, ensure that it cannot be started by a manual or automatic system and that you have understood the operating principles of the system.

The bearings are greased for life: approximate life of the grease (depending on use) = 20,000 hours or 3 years.

Enter the current hours of operation

Enter the temperature rise in the bearings

Does the temperature rise in the bearings exceed 60°C above the ambient temperature?

Should this value be exceeded, the machine must be stopped and checks carried out.

• Weekly check the condition of the tires, and gauge the air pressure. Tires that have cuts or cracks or little tread should be repaired or replaced.

• Servicing or troubleshooting must be carried out strictly in accordance with instructions so as to avoid the risk of accidents and to maintain the machine in its original state.

• All such operations performed on the alternator should be undertaken by personnel with training of electrical and mechanical components.

• Before any intervention on the machine, ensure that it cannot be started by a manual or automatic system and that you have understood the operating principles of the system.

• It is advisable to check that circulation of air is not reduced by partial blocking of the suction and discharge louvres: mud, fibre, grease, etc.

• Cleaning product for the windings

WARNING! Do not use: Trichlorethylene, perchlorethylene, trichloroethane and any alkaline products.

• Daily check for loose wire routing clamps. Clamps must be secure and properly mounted. Also check wiring for wear, deterioration and vibration abrasion.

• Check daily for evidence of arcing around electrical terminals.

• Daily check that the grounding circuit is in accordance with the National Electrical Code Article 250-122 and the local code requirements. As a minimum, the copper wire size should be American Wire Gauge 8 (AWG#8) from the grounding terminal, frame, generator and engine block.

Daily check for loose, or frayed wiring insulation or sleeving.
