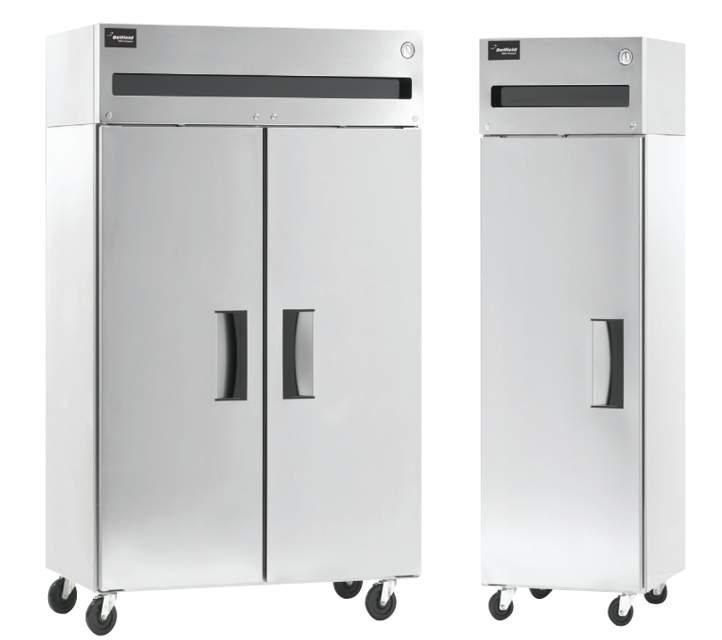

The Delfield Company Refrigeration Equipment 6176XL-S

Turn the thermostat to OFF and disconnect the unit from the power source

Clean the interior and exterior using appropriate cleaning solutions

Rub with the grain of the stainless steel when cleaning the exterior

Stainless Steel Care and Cleaning

Use appropriate cleaning tools for stainless steel

Avoid using steel pads, wire brushes, or scrapers

Use appropriate cleaning solutions for stainless steel

Operation — To Set Time of Day (Two & Three Door Models Only)

Grasp the knob of the Paragon 8145 time clock dial in the center of the inner (2 hour) dial and rotate it in a counter-clockwise direction.

Continue turning until the correct time of day on the outer dial lines up with the time pointer.

Was the correct time set on the outer dial?

Was there an interruption of power to the freezer?

Disconnect power supply before servicing.

Ensure no live electrical parts are exposed.

Basic Maintenance — Doors/Hinges

Check if the hinge screws are tight.

Tighten the screws on the hinge brackets if necessary.

Is the door properly aligned after tightening?

Describe any damage noticed on the door or hinges.

Is qualified service required for further maintenance?

Select the cleaning method based on the coil condition

Ensure no high pressure water is used to avoid damage to electrical components

Clean the condenser fins of dust, dirt, and grease

Is the condenser coil free of dust, dirt, and grease after cleaning?

Describe any issues encountered during cleaning

Inspect the condenser coil for debris and dust accumulation

Is a simple brush sufficient for cleaning?

Is a vacuum or compressed air required for cleaning?

Is a de-greasing agent required for cleaning?

Spray the condenser coil with de-greasing agent if necessary

Blow through the condenser coil with compressed air if necessary

Ensure no high pressure water wash is used

Is the condenser coil totally blocked?
