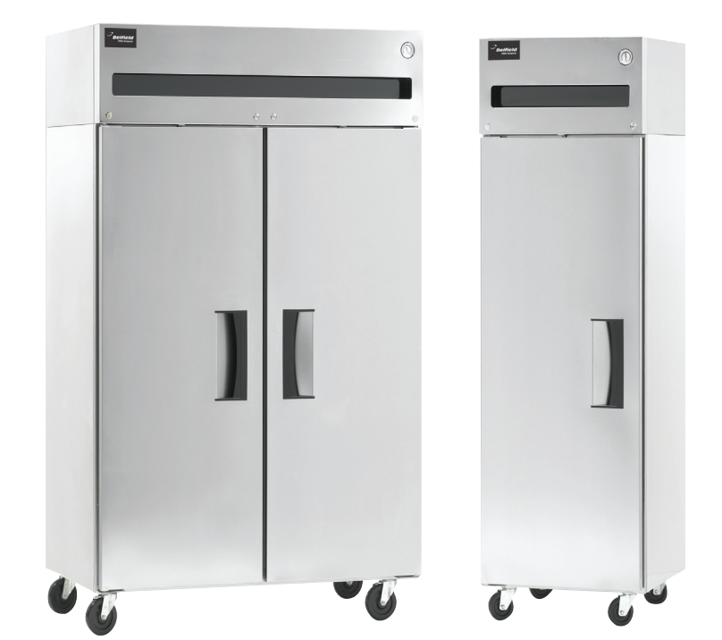

The Delfield Company Refrigeration Equipment 6076XL-SR

Basic Maintenance — Drain Maintenance

Ensure all components are properly connected and positioned

Is the unit level on the surface?

Check for obstructions in the drain lines

Describe any issues found during inspection

Defrost Timer Programming Guide (All Models)

Adjust defrost time on two and three door models by rotating pointer on inside (2 hour) dial

Adjust defrost time on 1 door models by setting electric control switches 1 thru 4

Adjust number of defrosts on one door models by setting switches 1 thru 4 on 'Cycletime' dip switches

Adjust number of defrosts on two & three door models by placing pins in the outer dial

Is the back-up time set to 60 minutes or less?

Consult the factory if complete de-icing of the coil is not accomplished within 60 minutes

Turn the thermostat to OFF and disconnect the unit from the power source

Clean the interior and exterior using appropriate cleaning solutions

Did you rub with the grain of the stainless steel when cleaning the exterior?

Did you avoid using abrasive cleaners on stainless steel and plastic surfaces?

Stainless Steel Care and Cleaning

Use appropriate cleaning tools for stainless steel

Did you avoid using steel pads, wire brushes, or scrapers?

Did you use alkaline based or non-chloride cleaners?

Basic Maintenance — Doors/Hinges

Check if the hinge screws are tight.

Tighten the screws on the hinge brackets if necessary.

Is the hinge pulling out of the frame?

Describe any damage to the doors or hinges.

Is qualified service required for repair?

Inspect the condenser coil for debris and dust accumulation

Clean the condenser coil with a brush for light dust and debris

Use a vacuum or compressed air for heavier dust build-up

Apply de-greasing agent for heavy grease and blow through with compressed air

Is a commercially available condenser cleaner required?

Ensure no high pressure water wash is used to avoid damage to electrical components
